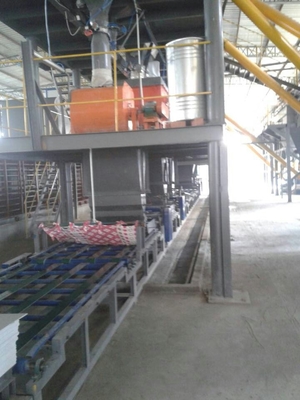

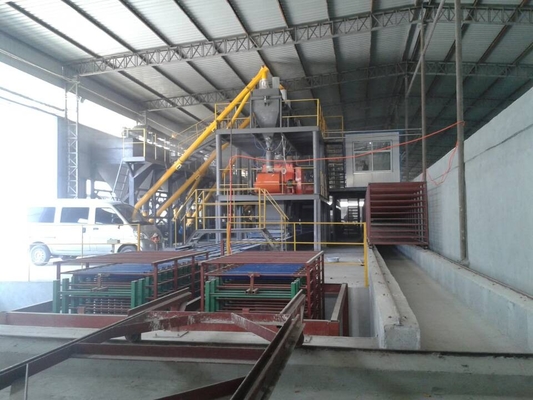

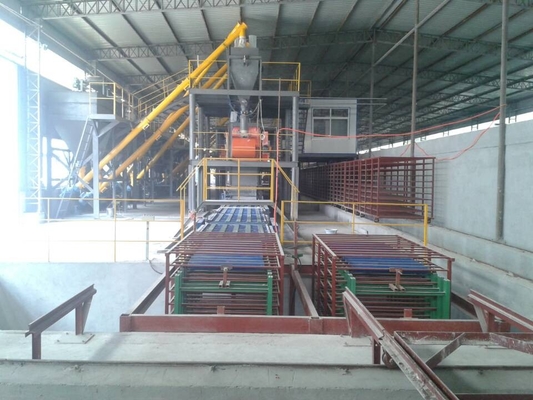

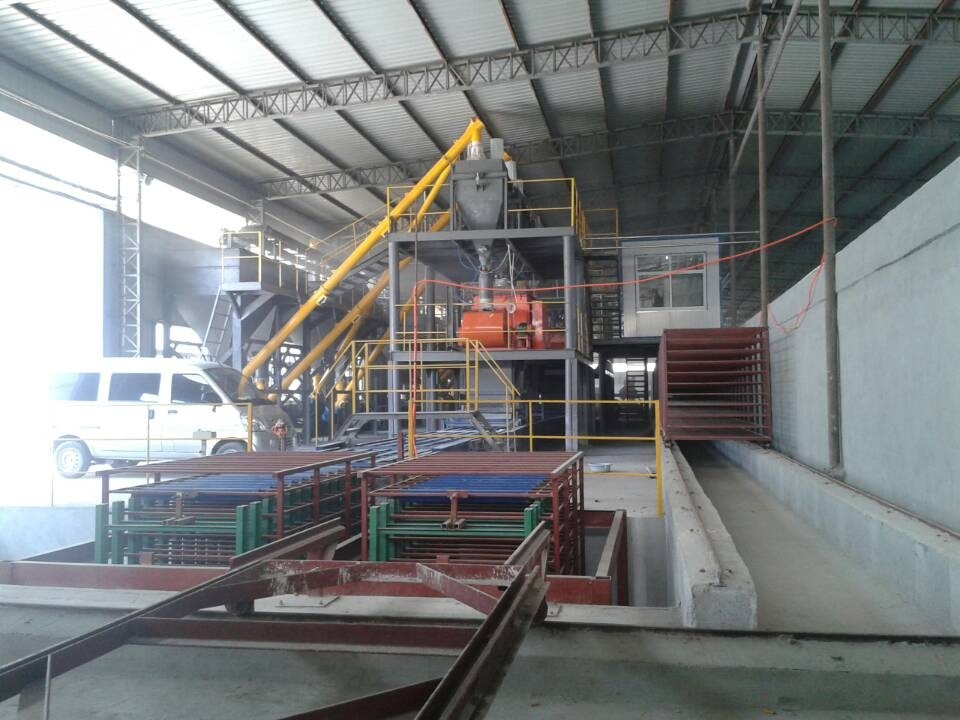

Hydraulic Switch Fiber Cement Wall Panel Making Machine High Degree Automation
Full fiber cement wall panel making machine ,mgo wall panel machine
1. High degree of automation equipment, hydraulic opening and closing
2. Simple operation and high efficiency, low labor intensity.
3 . Equipment automatic temperature control (electricity, water, gas can be heated), ejection time, short maintenance period.
4. Can produce prestressed inner wall and outer wall board (foam board, composite board, sandwich panel), performance has reached the domestic leading level of similar products, designed annual production of wall 50,000 square metres per year

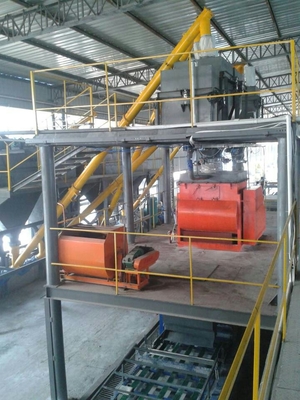

2.4 mixing equipment: every two minutes to complete a feeding,mixing,feeding process. It needs only one sets machine. Middle material mixing machine is used to complete a feeding,mixing,feeding process every four minutes. It needs two sets machine.
(3) molding equipment,auxiliary equipment( molding section)
3.1 molding equipment: outer size is 25*15*15m. Production speed is twenty meters per minute.
3.1.1 board entranceconveyor belt
3.1.2 material molding
3.2 board exit conveyor belt
3.2.3 cutting (cutting separation area: in normal production conditions, non-stop cutting machine need two people)
3.3.1 board thickness control.
3.3.2 speeding up output board
(4) second maintenance equipment,
4.1 On-the-shelf equipment
4.4.1 bracket car outer dimension is 2.7 meters * 1.5 meters. Every car have 25pcs brackets . Bracket outer dimension is 2.5 meters * 1.5 m * 0.1 meters. Every 7 seconds completed a board into brackets. Every 3 minutes complete a replacement empty bracket car process. Need 1 worker of puting bracket,2 workers of carrying bracket ,2 workers as driver of braclet car. (a elevator of 3 meters * 1.5 meters)
Maintenance workshop need 1000 square meters ,which are ventilated in summer, and insulated in winter.
4.2 off-the-shelf equipment
4.2.1 conveying out board and templates from bracket.
4.2.2 separation area, separated board with templated , board complete stacking by labor,and template delivery into cleaning area. (need some flat cars)
4.3 auxiliary equipment
One boiler: choose big air blower,so that hot air get through maintenance workshop by pipe, make maintenance workshop reaches constant temperature, humidity. Temperature keep in 35-45 degrees , humidity is not less than 100%. Need air flow.
4.3.2 Clearing mold area:Two groups of four workers in charge of clear template, and send cleared template into the molding line equipment.
1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.
2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and stuck.
3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.
4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.
5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.
6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
