Prefab House Exterior Fiber Cement Board Production Line Light Weight

Prefab House Exterior Fiber Cement Board Production Line Light Weight
Prefab House Exterior Fiber Cement Board Production Line Light Weight Prefab House Exterior Fiber Cement Board Production Line Light Weight Prefab House Exterior Fiber Cement Board Production Line Light Weight Prefab House Exterior Fiber Cement Board Production Line Light Weight

Large Image :  Prefab House Exterior Fiber Cement Board Production Line Light Weight

Product Details:
Place of Origin: CHINA
Brand Name: chuangxin
Certification: CE
Model Number: XD-1
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: 30000USD
Packaging Details: wood packing
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 set per month

Prefab House Exterior Fiber Cement Board Production Line Light Weight

Description
Raw Materials: Fiber Glass Mesh Application: Producing Fiber Cement Board
Capacity: Automatic Voltage: Locate Voltage
Main Process: Forming
High Light:

fiber cement board machine

,

sheet forming machine

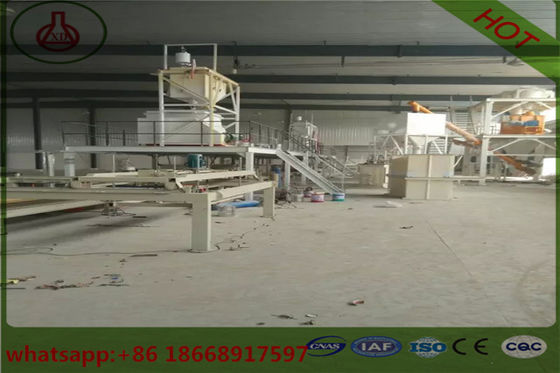

Prefab House Light Weight Exterior Fiber Cement Board Wall panel machine production line



Process of fiber cement board production line



(1)raw material supply



(2)ingredients,mixing machine



(3)molding equipment,auxiliary equipment



(4)maintenance naturalness for drying



(5)second maintenance area



(6)drying,choosing,cutting,Edge banding machine,packing equipment



Technology features of fiber cement board production line
No. Test items Standard indicators Test results Single judge
1 Bending degrees horizontal >=22Mpa 24.9Mpa Qualified
vertical >=17 Mpa 21.4Mpa
2 Impact strength >=2.0 KJ/m2 3.7KJ/m2 Qualified
3 Indensity >=1.6g/cm3 1.72g/cm3 Qualified
4 Water absorption <=24% 16.8% Qualified
5 Waterproofness According to the National standard GB8041 tested -24H checking allow damp mark on the back of the board , but no water drop Meet the National standard GB8041 Qualified
6 Freezing resistance According to the National standard GB8041 tested- after 25 times Cycliccrackingno break and layer appear Meet the National standard GB804
1
Qualified
7 Sound resistance Meet 4sdb (GBJ75-B4)
8 Radioactivity Meet standard GB6566-2001A)
9 Noninflammability In accordance with the GB5464-85 and GB8624-88 , A class building materials



No. Test Item National standard Wall panel testing
1 Compressive strength ≥3.5MPa ≥3.7MPa
2 Drying shrinkage ≤0.6mm/m² 0.37mm/ m²
3 Hanging force

≥1000N 24hours

No 0.55mm crack in 24hours

≥1000N 24hours

No 0.55mm crack in 24hours

4 shock resistance

without crack shocked

by 30kgs sandbag five times

without crack shocked

by 30kgs sandbag five times

5 The bending failure load

≥1.5 times of the self

weight of the wall panel

≥2.5 times of the self weight

of the wall panel

6 radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

7 density ≤90kgs/m² ≤43kgs/m²
8 Air insulation of sound ≥35dB ≥43dB
9 Fire resistance limit ≥1 h ≥ 1h



Advantages



Advantages
Number Item Content
1 Low cost Low labour and material costs
2 Long life Up to 30 years
3 Recycling use Reused for more than 10 times
4 Flexible layout Layout adjusted according to your requirement
5 Environment protection Environment-friendly materials used
6 Safe & Stable steel structure Earthquake proof & Wind resistance



Prefab House Exterior Fiber Cement Board Production Line Light Weight 0
