Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine

Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine
Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine

Large Image :  Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine

Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine

Description
Product Name: Roof Tile Machine Raw Material: Mgo,mgcl,fiber Glass Mesh
Type: Free Standing
High Light:

roof sheet making machine

,

roofing sheets manufacturing machine

Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine





automatic Mgo roof tile Machine,Roof Tile Making Machine,root tile equipment



1. Introduction for roof tile machine:



Straw color wave roof tile forming machine can produce pantile with all kinds of

 waves and heat-preserving layer, which will be used at the roof as the substitute

 of traditional asbestos tile, color steel tile and cement tile. There is asbestos in the

 asbestos tile which include carcinogen.



Product features

The product manufactured by this equipment has following features: fireproof,

waterproof, environmental protection and no toxicity, at the same time it is

 resistant against acid, alkali and aging. This product can be nailed, planed, sawed

 and sticked. In view of that its fireproofing grade is A, so our product will not be

 combustible when the fire is 800-1000°C.At the same time, when our product is

fell into the water for a week, there are not the following phenomenon such as

chalking, deformation and warp. In light of there is not glue in the raw materials,

 so there is not formaldehyde and benzene for our boards.Rich color and never

 fading



Technology features

This machine adopts reverse in-phase running technology.

There is not any requirement about high temperature and high pressure during

production processing. The board will be

 formed at one time after rollerextruding under the conditions of normal

 temperature and normal pressure. This is a green environmentalprotection project,

because that there is no waste water, waste materials and waste gas during its

 production processing. The finished board don’t need high temperature drying,

 airdrying and watering, and under the normal temperature, they will dry well

indoor.



Equipment Model and Product Specification

According to different production, our equipment has 6 models for large-scale, middle-scale and

smallscale. Our all equipment can produce board with same quality and specification

 but different production.Customers can adjust the specification of the pantile

 according to different requirements, the standard specification is 1.8mX0.72m,

 the biggest length is 6 m, the thickness is 3mm~6mm generally. In addition, this

 equipment can produce the pantile with

heat-preserving layer.

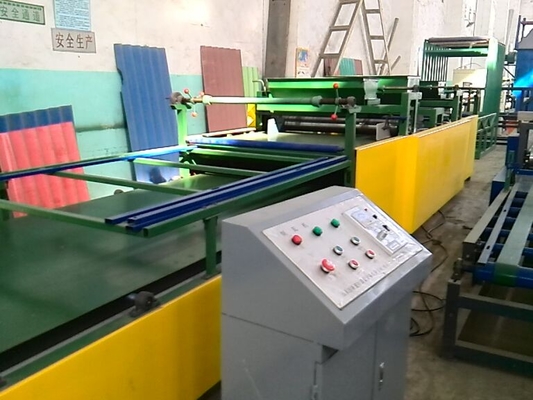

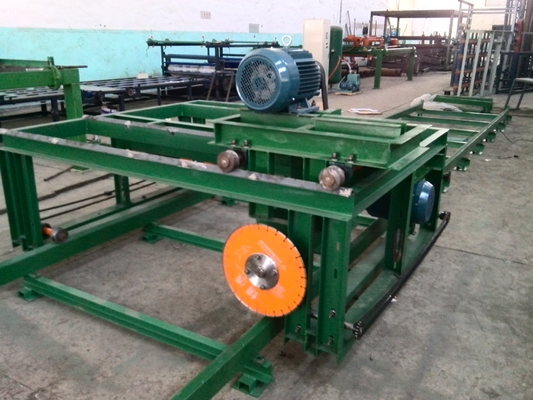

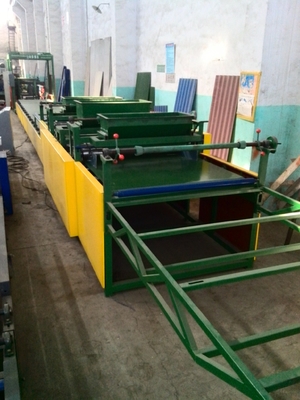

  Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine 0Straw Color Wave Tiles Making Machine , Reverse In Phase Running Tech Roof Tiles Machine 1

Mgo roof tile Machine
