Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

China Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS supplier
Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS supplier Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS supplier Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS supplier Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS supplier

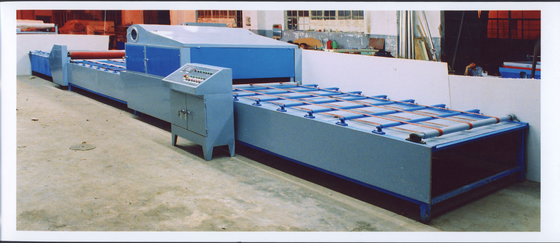

Large Image :  Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

Product Details:

Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 50 Sets per year
Contact Now
Detailed Product Description
Product Name: Door Machine Production Capacity: 150 Sheets
Texture Of Material: Steel Warranty: 1 Years
Automatic Grade: Automatic Raw Material: Mgo,mgcl,fiber Glass Mesh
Standard: CE Type: Free Standing

Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS

PVC vacuum forming machine, Absorbing Machine,Vacuum Forming Machine

Fetures

Suitable for PVC, PE, PET, PC, PP, HIPS, APET, PETG, PS etc, heat the material and make them soft then vacuum suction, that can transform sheet material into various plastic blister.
This machine is widely use in blister sample making, also can be used in small batch production.



1.25pcs ceramic infrared heating boards which can be controlled separately, suit for different size or different thickness material.
2.25pcs Solid state voltage regulators, control heating boards simple and visualized.
3.Large-scale cooling fan which can cool the products quickly.
4.Water-spray cooling system which suit for thick material.(optional)
5.Manual and Semi-auto style.



Parameters
Model LK-61
Power supply AC380 50HZ
Power 12.5KW
Forming size 560*610mm
Max. forming height 200mm
Speed 200~300moulds/H
Thickness of material 0.2~1.5mm
Machine size 1800*1200 *2000mm
N. weight  600KG

1. This machine adopts automatization control and vacuum negative (positive)

pressure technology with steel frame structure, exchangeable worktable, compact

structure, beautiful appearance as well as easy and safe operation. With small

covering area, it has no special requirement for workshop and infrastructure. The

 personnel can get relevant technology directly after short-time training.

2. Wide application: The machine can realize the optimum design without the

restriction of board quality, surface structure and shape. One box can overlay

several work pieces.

3. High production efficiency, low labor intensity, short production period, small

investment and quick effect. At the same time, the one machine can manufacture

several products.

4. Stable technology, big surface-sticking intensity, clean component surface.

II. Product Specification and Technical Parameter

Name: Vacuum Plastic Absorbing Machine  Outside Size: 6670×1768×1220(mm)

Power Supply: four-wire 380/220v        Power:    KW(According to different

equipment model)

Control and Driving Method: Automatic and Manual

III. Performance and Feature of Plastic Absorbing board

1. Performance

 (1) High waterproof performance: The sample was water-tight in water (30cm

 high) for 24 hours.

 (2) Anti-pollution. For all kinds of dirty, it can be cleaned up and bright as before.

 (3) Good anti-combustion performance and bond performance, high strength as

well as no fall off.

 (4) Anti-corruption and anti-high temperature. With the various kinds, they can be

 used at different environment.

 (5) Rich of noble and elegant design, the decorating surface has several visual

effect, such as “bright light and dull bright light”. And it need not painting.

2. Application scope

 (1) Door & Window Series: European-style door, Chinese-style door, door (window)

frame, buckled board as well as all kinds of bottom line and pressed-line.

 (2) Furniture Series: Tabletop, table-board, cabinet door and complete kitchen.

 (3) Deformed decorating component for car and boat as well as the making of

sound box.

3. Operation Feature:

 (1) Easy operation. You can install them on site without keel frame, so it will save

the purchasing fee for electrical tool and the relevant materials.

 (2) It will short the operation period and reduce the labor intensity of worker.

 (3) It can save paint and 70% woodworking fee.



After purchased the equipment, our company will take responsibility for trainning

 technical personnel until he can get the skill.

There are many professional technical personnel in our company, they will offer

 consultation about the equipment and technology as well as technical training on

 site for free. And they will go to your factory for installation and testing for free.

Welcome you to our company for a site visit, we will service for you sincerely    Steel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPSSteel Structure Manual / Semi Auto Vacuum Forming Machine for PVC / PE / PET / HIPS
