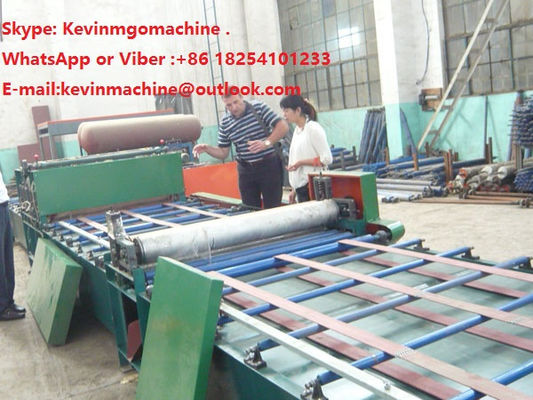

Fully Auto Mixing System Sandwich Panel Making Machine , Wall Panel Manufacturing Equipment

China Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment  supplier
Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment  supplier Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment  supplier Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment  supplier Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment  supplier

Large Image :  Fully Auto Mixing System Sandwich Panel Making Machine , Wall Panel Manufacturing Equipment

Product Details:

Place of Origin: CHINA
Brand Name: chuangxin
Certification: ce
Model Number: XD-D

Payment & Shipping Terms:

Minimum Order Quantity: 1 sets
Price: negotation
Packaging Details: packing
Delivery Time: 30 days
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Production Capacity: 2000sqm Warranty: 1 Years
Automatic Grade: Automatic

Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment





Straw board and  MgO board sandwich panel door  making machine with capacity 1500 sheets



production is our company new product developed successfully referring to advanced

 technology and experience from home and abroad.

It is the great invention of the exterior insulation board realizing industrial

production, and we have applied for many national patents.

CE certification mgo sandwich panel production consists of 3 parts:

1. Fully-auto mixing system

2. Automatic board-making machine

3. Automatic cutting saw

No.

Test Item

National standard

Wall panel testing

1

Compressive strength

≥3.5MPa

≥3.7MPa

2

Drying shrinkage

≤0.6mm/m²

0.37mm/ m²

3

Hanging force

≥1000N 24hours

No 0.55mm crack in 24hours

≥1000N 24hours

No 0.55mm crack in 24hours

4

shock resistance

without crack shocked

by 30kgs sandbag five times

without crack shocked

by 30kgs sandbag five times

5

The bending failure load

≥1.5 times of the self

weight of the wall panel

≥2.5 times of the self weight

of the wall panel

6

radioactivity

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

Inner radiation index Ira≤1.0

Outer radiation index IY≤1.3

7

density

≤90kgs/m²

≤43kgs/m²

8

Air insulation of sound

≥35dB

≥43dB

9

Fire resistance limit

≥1 h

≥ 1h



MAIN TECHNICAL SPECIFICATION



The length of the production line:38000mm × 2200mm × 2800mm

Total Weight: about 24000KG

Main  Power: 35KW

Working Speed: 4m/min

Material : 45# steel, quenched HRC 58-62

Electric Standard: 380V / 50 HZ / 3 PHASE

Feeding Width: 1150mm /1200m

Effective Width: 950mm

Thickness of the coil: 0.3-0.8mm

Density of EPS:18KG/M3

Output: 600,000m2 per year

Thickness of the material:0.4-0.8mm

Width of Material:1200mm Max



Core Material:EPS Board

Production line speed:3-5m/min

Production width:1000mm/960mm

Production thickness:50mm-150mm

EPS Sandwich panel machine is made up of color of tiles and core of EPS

Application: Public construction, roof and wall of workshop, building, both etc

Function:wall panel ,roof panel

Characteristic:quick construction ,everlasting,beautiful





              Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment Fully Auto Mixing System Sandwich Panel  Making  Machine , Wall Panel Manufacturing Equipment
