Product Details:
|
| Raw Material: | Mgo/mgcl2/sawdust /nonwovens | Warranty: | 1 Year |
|---|---|---|---|
| Automatic Grade: | Semi Automatic | Dimension: | 25m*1.58m*1.78m |
| Panel Width: | 1300mm | Material: | Steel |
| Cerification: | CE | ||
| High Light: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||

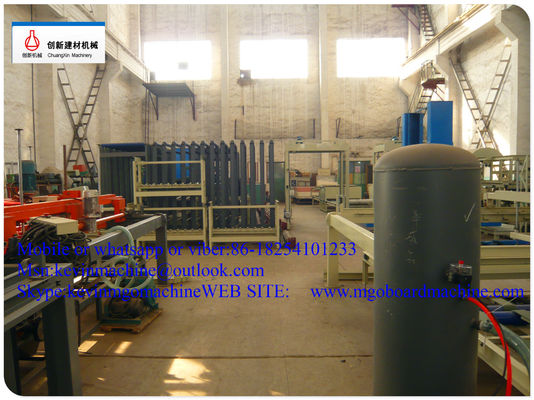

Semi-Automatic Mgo Wall Board Equipment For Magnesium Oxide Production Line
1. product features
The product manufactured by this equipment has following features:fireproof,waterproof,environmental protection and no toxicity,at the same time it is resistant against acide and aging.this product can be nailed ,planed,sawed and sticked.In view of that its fireproofing grade A ,so our product will not be combusitble when the fire is 800-1000 C.at the same time ,when our product is fell into the water for a week, there are not the following phenomenon such as chalking ,deformation and warp.In light of there is not glue in the raw materials.so thereis not formaldehyde and benzene for our boards .
2. Technoloy features
There is not any requirement about high temperature and high pressure during production processing .the boarad will be formed at one time after roller-extruding under the conditions of normal temperation and normal pressure .this is a green environmental-protection project, because that there is no waste water ,waste materials and waste gas during its production processing .the finised board don’t need high temperature drying ,air-drying and watering ,and under the normal temperature ,they will dry well indoor .
1 |
Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
3. Benefit Analysis
1)Cost accounting
raw material cost:15 yuan/piece;0.5 yuan/piece;
water-electricity fee:0.2 yuan/piece
depreciation of the workshop:0.2yuan/piece
Total:15.90yuan/piece
2)Profit analysis(take the middle-scale equipment as example), 400 pieces per day ,at the common price of 40 yuan/piece to sell,and then the profit per piece is that: 40 yuan/piece-15.9yuan/piece=24.1 yuan/piece,the profit per day is that:400 pieces*24.1yuan/piece=9640yuan
EQUIPMENT CONTRIBUTION CONDITIONS
| frequency | pressure | equipment | rooms | capacity |
| 50HZ | 380V | 1.7million M2 | 12M*80M/9M*40M | 10KW-15KW |
4. Production conditions
The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree, this production line is divided into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)
5. Unique advantage
after installation and commissioning, we will provide mgo board formula suitable with client’s demand ,ensuring clients can producce qualified mgo board .additional,we will help local experienced engineer to master the production process.
