Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-DB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

Semi - Automatic MGO BOARD Machine For Fire Insulation Building Materials

Description
Product Name: Mgo Board Machine Production Capacity: 1232 Sheets
Texture Of Material: Steel Warranty: 1 Years
Automatic Grade: Automatic Raw Material: Mgo,mgcl,fiber Glass Mesh
Standard: CE Type: Free Standing
Weight: 5T Panel Thickness: Adjustable
Place Of Origin: Shandong China
High Light:

Construction Material Making Machinery

,

polyurethane sandwich panel machine

Semi-automatic MGO BOARD Production line

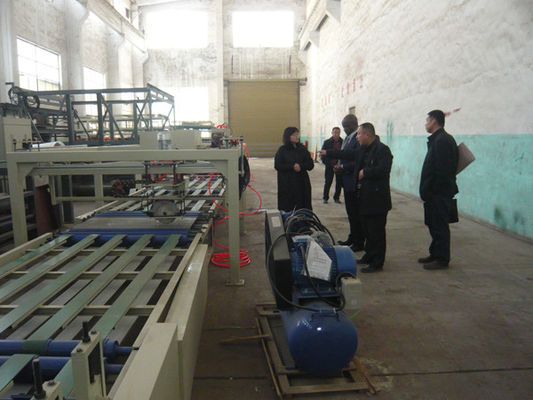

1. Production Line
MGO Board Production Line can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flakeboard, Medium Density Fiberboard and Gypsum Board. It is really environment friendly product and lower cost.

2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.

3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.

4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.

Thickness

2-24mm
Width 600mm-1300mm
Length 2400mm-3000mm
Capacity 200 -----2500 square metres per day 8 hours
Configuration customization





5.products produced by this machine

Technical Index for finished board

1. Oxygenic index%: 90

2. Level combustion: SO
3. Vertical combustion: SO
4. Water content rate: 10.9%
5. Capacity: 1.15g/cm3

6. Static bending intensity: 169.46Mpa

7. Density: T/ m31.13

8. Water resistance: Without chalking for 24 hours and there is no change on surface

9. No Three-wastes (waste water, waste gas and waste residue), no pollution and environmental protection.




6. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
