Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line

China Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line supplier
Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line supplier Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line supplier Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line supplier Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line supplier

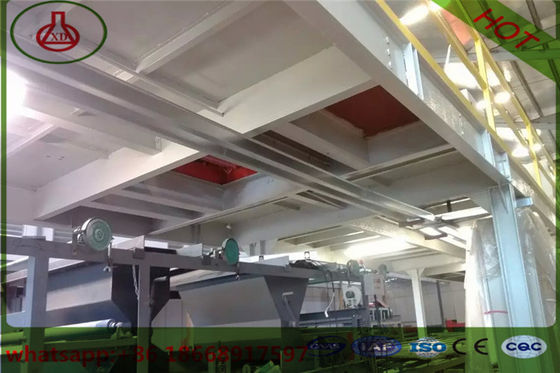

Large Image :  Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line

Product Details:

Place of Origin: CHINA
Brand Name: CHUANGXIN
Certification: CE
Model Number: XD-ED

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: FOB USD10000--30000/SET
Packaging Details: 1 set per container
Delivery Time: 30 days after received your payment
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Board Raw Material: Mgo/mgcl2/fiber Glass Mesh Board Productity: 1000 Sheets/shift
Board Warranty: 365 Days Materials: Steel
Use: Making Board Power: 54KW
Panel Width: 1300mm Frequency: 50HZ

capacity 1000 sheets / shift smooth fiber cement board machine equipment plate production line price





Board Application:

Interior and exterior wall partition on construction.

For New Construction, Additions,or Renovations and so on.

Board Features:

Adjustable Wall Thickness: 60mm, 75mm, 90mm,100mm, 120mm, 150mm,180mm.

Maximum width: 610mm.

Adjustable Length: Depond on different customer's different demands, engineering requirements, and shipment conditions.

Board Advantages:

· Light weight

· Good sound insulated

· Heat Insulated

· Waterproof/ Water fast : Near about 0% moisture absorption.

· Fireproof.

· Energy Efficient

· Environmental, Ecofriendly.

· Civilized and convenient construction

· High Intensity without deformation.



Compressive Strength ~20 MPa (3, 000 PSI)
Impact Resistance > 6 kJ/m2
Tensile Strength > 5.5 MPa
Density (Specific Mass) ~1000 Kg/m3 (+/-< 2%)
Moisture Absorption ~26% maximum saturation (slow absorption rate)
Moisture Content ~6%
Water Vapour Diffusion ~28 / 35
Specific Heat ~930 J/kgK
Thermal Conductivity ~0.44 W / mK
Modulus of elasticity ~6045 N/mm2
Flexibility
UNI E 12372
~20.1 N/mm2 maximum
12mm x 1220 x 2440 = 10 N/mm2
Surface Alkalinity ~10 Ph
Thermal Expansion Hot/Cold 0, 01 mm/mC (from temp +20C to -20C)
Expansion in Water less than < 0.02% from ambient to saturation
Freeze / Thaw - UNI EN 520 100 cycles without notable effects
Frost Resistance no water drops form on surface
Combustibility / Fire Ratings non-combustible / 12mm exceeds 1 hr fire rating
Dimensional tolerance thick 0.2mm / width 2mm / length 3mm / Sq. 3mm
Toxicity Pollutants Heavy Metals - UNI EN 12457-2 Below measurable levels of test instruments
Asbestos Analysis Absent - not measurable
Formaldehyde Analysis Absent - not measurable
Sound Attenuation (9mm) tested design ASTM E90 = STC 48, 50, 55, & 60
Color Slate Grey and Chalk White
Surface texture smooth one side; uniform machine textured back
Basic Compounds (MgO)+(natural silicates)+(glass fibre)+(wood fibre)



Production conditions

The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree, this production line is divided into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)



Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line

Attention

The technology transfer fees of the composite mgo board:6000yuan (If you purchase our equipment,then the technology fee is free)

Sign the contract printed by Industry and Commerce B urear

We provide national grade certificate of key new product, quality and fireproofing grade ,and train2--3 technical personnel for you till then they master the recevant technology.



Smooth Fiber Cement Board Machine 50HZ 54KW Construction Plate Production Line
