Product Details:
|
| Material: | Steel | Name: | Straw Board Machine |
|---|---|---|---|
| Warranty: | 1 Year | Size: | Standard |
| Cercificate: | ISO | Automatic Grade: | Automatic |
| Main Process: | Forming | Brand: | Shandong Chuangxin |
| Place Of Origin: | Shangdong China | ||
| Highlight: | Wall Panel Roll Forming Machine,roll forming equipment |
||
email : mgomachinery@hotmail.com
whatapp : 0086 18668917597
semi automatic straw board machine machinery equipment export to Egypt
1. Product Description
Low site requirements: indoor / outdoor production, 800-1000 square
meters’ manufacturing site area (excluding storage site).

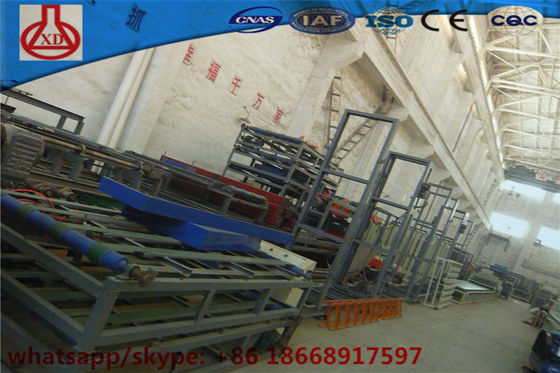

Equipment composition: raw material feeding mechanism, sewing
mechanism, product outputting mechanism, cutting mechanism and automatic
control system, 5 parts in total.
2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic
chemical materials at one time after roller-extruding. The source of raw materials
is widely and they are purchased easily for customers.
Take specification of 1.22mX2.44mX3mm as example, the cost is 7~8 Yuan, and
the market price is generally 13~16 Yuan.
straw board consumption comparable table
| Names of materials | Each dosage |
| Magnesium | 2.978yuan |
| Magnesium chloride | 1.23yuan |
| Non-wovens | 0.85yuan |
| Glass cloth | 1.05yuan |
| Perlite | 0.62yuan |
| Sawdust | 0.647yuan |
Take 1200mm*2400mm*8mm Glass magnesium board an example in china.
3. Technology features
| 1 | Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board |
≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts |
No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) |
≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale,
middle-scale and small-scale. Our all equipment can produce board with same
quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and
unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
|
Technical Index for finished board |
1. Oxygenic index%: 90 2. Level combustion: SO 3. Vertical combustion: SO 4. Water content rate: 10.9% 5. Capacity: 1.15g/cm3 6. Static bending intensity: 169.46Mpa 7. Density: T/ m31.13 8. Water resistance: Without chalking for 24 hours and there is no change on surface 9. No Threewastes (waste water, waste gas and waste residue), no pollution and environmental protection. |
straw Board can be used for ceiling, wall skirting, decorating of
indoor wall and lining board for furniture.It can replace three-ply
board, five-ply board, flakeboard, MDF (Medium Density Fiberboard )
and Gypsum Board.
5. After-sale
1) Service life: over 20 years
2) Warranty :1 year
3) Full automatic production system
4) Unique raw materials measuring ,delivery and mixing system
5) High production output&less workers*Environmental protection
6) Long-term professional and all-round services
7) Free training
