|Name:||Straw Sheet Making Machine||Width:||1300mm|
|Dimension:||Different Size||Colour:||Customer Required|
|Automatic Grade:||Automatic||Raw Material:||Mgo,mgcl,fiber Glass Mesh|
|Texture:||Strength Steel||Type:||Free Standing|
Wall Panel Roll Forming Machine,
roll forming equipment

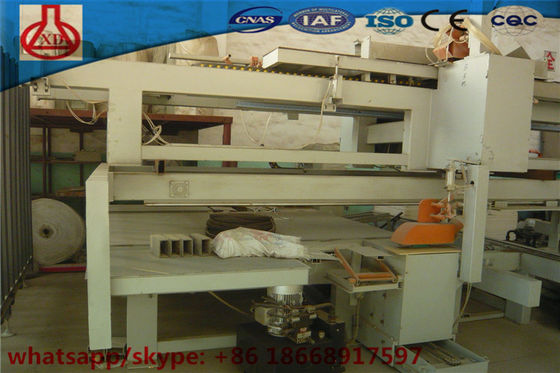

1300mm width 380V straw sheet making machine with 600sheets / shift capacity
1. Product Introduction
This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading no-woven cloth, compounding and repressing. The equipment runs stablely with high automatization degree, and the specification of its product can be adjusted arbitrarily. The equipment actually realizes the industrial production-line of new model building wall board, and the product have even and glazed surface with high compactness. The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages of the former casting forming with upright mould or flat mould, such as large mould usage, low recycling rate, required electrical heating or steam heating, single kind of product as well as the sound insulation and heat-preserving which don’t meet the market requirements.
2. Raw material and cost analysis
The wheat straw board is made of filling materials, such as sawdust and all kinds of crushed plant straw (you can select any one kind ) and several chemical raw materials which are token as modified material after special technology. The board has such features: quickly hard, high strength, large format, fireproofing, dampproof and good waterproof performance. It can be nailed, planed and sticked. The machine can be adjusted arbitrarily, and then produce the board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will.
|Names of materials||Each dosage|
Take 1200mm*2400mm*8mm Glass magnesium board an example in china.
3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding
under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste
materials and waste gas during its production processing. The finished board
don’t need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
4. Equipment Model and Product Specification
Technical Index for
1. Oxygenic index%: 90
2. Level combustion: SO
3. Vertical combustion: SO
4. Water content rate: 10.9%
5. Capacity: 1.15g/cm3
6. Static bending intensity: 169.46Mpa
7. Density: T/ m31.13
8. Water resistance: Without chalking for 24 hours and there
is no change on surface
9. No Threewastes (waste water, waste gas and waste
residue), no pollution and environmental protection.
straw Board can be used for ceiling, wall skirting, decorating of
indoor wall and lining board for furniture.It can replace three-ply
board, five-ply board, flakeboard, MDF (Medium Density Fiberboard )
and Gypsum Board.
After purchased the equipment, our company will take responsibility for trainning
technical personnel until he can get the skill.
There are many professional technical personnel in our company, they will offer
consultation about the equipment and technology as well as technical training on
site for free. And they will go to your factory for installation and testing for free.
Welcome you to our company for a site visit, we will service for you sincerely.
