The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line

The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line
The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line
The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line

Large Image :  The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line

Product Details:
Place of Origin: CHINA
Brand Name: CHUANGXIN
Certification: CE
Model Number: XD-AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB USD10000--30000/SET
Packaging Details: 1 set per container
Delivery Time: 30 days after received your payment
Supply Ability: 20 sets per month

The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line

Description
Raw Material: Mgo/mgcl2/sawdust Experience: 30 Years
Control System: PLC Simens Main Process: Batching,forming,cutting,solidification,demoulding,drying,etc
Surface: Thin Slurry Surface Automation: Semi /high /full Automatic
High Light:

Construction Material Making Machinery

,

polyurethane sandwich panel machine

the latest full automatic Mgo drywall board making machine production line

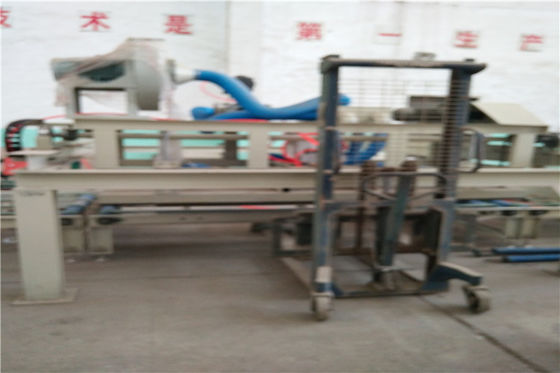

The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line 0

Mgo Board Production Line Equipment Description



Product name magnesium oxide board /fireproof board /Standard Mgo board/Sanding Mgo board
Capacity 2000pieces/shifts/8hours, calculate based on 1220x2440x8mm
Configuration Simple, semi automatic ;full automatic
Raw material A:basic material :
1.MGO power
2. Mgcl2
B.filling material:
1. Sawdust
2. perlite
C:reinforce material:
1. Non-woven Fabric
2. Fiber glass mesh
Finished board size Standard:
Thickness2.7-22mm ,
width:1200/1220mm(4feet)
Length:2400/2440mm(8feet)
Note:special size can design specially
Finished board type Can produce both sanding MGO board ,non-woven MGO board
voltage According to clients’ requirements
Control system PLC SIEMENS Brand
Warranty 1 year
After-sale-service

Our Engineering will help local experienced engineering for one year to

mater the production process



Mgo board production line conditions



1 Air-dry density ≤ (Standard index)50kg/m2 (Test Value) 30.0kg/ m2
2 Drying shrinkage rate of the board ≤0.08% 0.015%
3 Anti-breaking load ≥1400N 5640N
4 Anti-impact No breakage phenomenon such as cracking after three impacts No breakage phenomenon such as cracking after three impacts
5 Thermal resistance of main section (T=90mm) ≥1.35(m2.k)/w ≥1.36(m2.k)/w
6 Thermal bridges area ratio ≤8% 2.22%
7 Sound reduction Index   36dB
8 Radioactivity   None

The Latest Full Automatic Mgo Drywall Board Making Machine , Sandwich Panel Production Line 1



Features

1. The unique body design, segmented adjustable independently to meet the

production line installed in a horizontal position, high strength, high precision,

stable transmission, provided a guarantee for the continuous mass production.

2. Adopting double drive double-roll extrusion process, the product finishs whole

production process from the

slurry, the main ingredient, spread the cloth, compound, complex pressure by

one-time and cut in one set of continuous production, which is saving labor costs.

3. The surface of the table use rolling bearings,transmission steady, drive friction

small, customized flat conveyor belt, transmission smooth, non-skid, no deviation

and durable.

4. Roller forming surface is smooth, wear-resistant, anti-rust. Upper and lower

rollers can be adjusted to accommodate various thicknesses

of sheet metal,the thickness 3 to 20mm, width 1220mm, length 2440-3000mm

to meet different market needs.

5,Stepless frequency conversion speed motor uses the advanced Siemens process

control, which will be adjustable speed, simple operation and easy maintenance.

FAQ

Q

How many projects have you installed?

A

we have installed over 100projects in domestic and abroad.

Q

How many years experience do you have in mgo field?

A

Our general engineer has around 20years experience; all others have over 10years experience.

Q:

Do you supply spare parts?

A:

Excellent easy broken parts support for buyers. Easy broken parts guarantee for one year.

Q:

Will you provide trainning?

A:

The training is free of charge , and our engineer will be on duty to train your worker.

Q:

How will you provide installation&commissioning?

A:

Will provide 2~4persons(adjustable according to the degree of automatic )for installation.
