Product Details:
|
| Raw Material: | Mgo/mgcl2/sawdust | Texture Of Material: | Steel |
|---|---|---|---|
| Machine Application: | Producing Wall Panels | Main Process: | Forming |
| Feature: | Long Life | The Machine Classfication: | Wall Panel Making Machine |
| Spare Parts Supply: | Will Supply Any Time | ||
| Highlight: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||
| MGO Board size | length :2440-3050mm Width:1220/1200 Thickness :3-20mm normally, can be adjusted accordingly |
| MGO Board type | Common mgo board ,Sanding mgo board ,MGO Sulfate Board |
Raw Material |
MgO,Fiberglass cloth , non-woven fabric ,sawdust and perlite |
| Equipment Capacity | Max 2000pieces/shift(Size:1220x2440x8mm) |
| Configuration | High Automatic |
| Board Application | Interior/exterior wall,floor,ceiling,etc |
| Famous Brand Used | German Rittal ,SIEMENS ,Schneider |
| Plant Area | Area:not less than 5000SQM High :not less than 7meter |
| Workman | 27-39 workers needed ,it depend on different automatic degree |
| First Curing room | Time :12h, Temperature:40C,humidity:60-90% |
| Second Curing room | Time :48h,Temperature:50ºC,Humidity:60-90% |

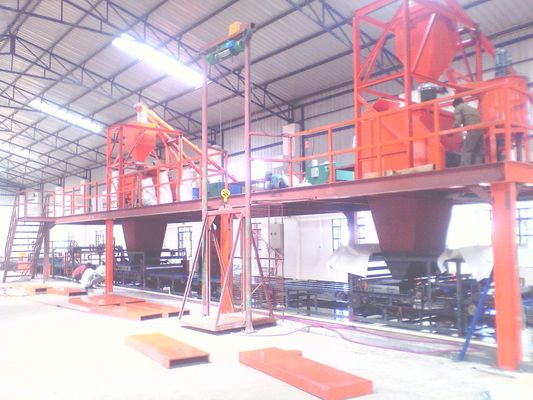

MgO board production line
ADVANTAGE OF MgO BOARD MACHINE:
A. Simple raw material,no regional restrictions (cement,river sand,fly ash,all kinds of
insulation materials,chopped fiber or glass fabric and so on),after one-time processing
forming.Production technology is simple,low cost,less investment,quick effect.
B. High grade of automation,easy operation(operators through simple training can
mount quard) ,low labour intensity,assembly line working,no noise,no pollution,
no "three-waste" emissions in production process.
C.Low energy consumption,no need of high temperature,high pressure in production
process,the products would be one-step molding in normal temperature,no special
requirements for production are etc. conditions.
D.According to the different requirements of different customers,our equipments can
produce different specification (length,width,height),all kinds of insulation board of
different materials,to meet the needs of different consumers.
| mgo board | fully automatic |
| capacity | 1500 sheets |
| automatic | HIGH |
