Product Details:
|
| Product Name: | Mgo Board Machine-A | Warranty: | 1 Years |
|---|---|---|---|
| Automatic Grade: | Semi Automatic | Raw Material: | Mgo,mgcl,fiber Glass Mesh |
| Standard: | CE 3C | ||
| High Light: | gypsum board production line,fiber cement board production line |
||

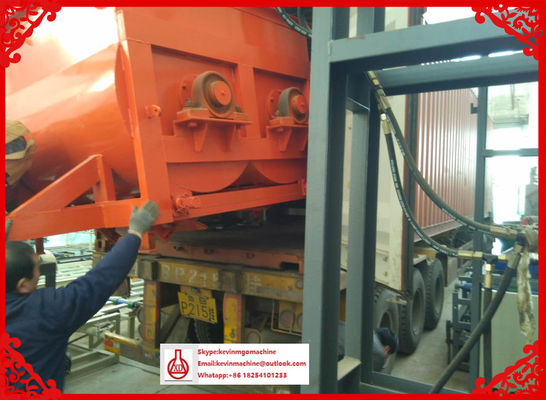

Light Weight EPS Sandwich Panel Machine , Magnesium Oxide Board Manufacturing Process Line
full automatic magnesium oxide board production line,Magnesium Oxide Board Production Line
1. Composition:
Core Material: EPS, Cement and fly ash core.
Surface materials: Fiber reinforced Calcium silicone board or Cement Calcium Silicone Board.
2. Specification:
L*W*T:2440mm*610mm*50mm/60mm/75mm/90mm/100mm/120mm/10mm.2270mm*610mm*50mm/60mm/75mm/90mm/100mm/120mm/150mm/180mm.
3. Application:
Interior and exterior partition on steel or concrete structure building.For New Construction,
Additions,or Renovations.
4.Special Features:
Different Wall Thickness: 60mm, 75mm, 90mm,100mm, 120mm,150mm,180mm.Maximum
width: 610mm.
Length: According to your demands, engineering requirements, and shipment conditions.
5. Advantages:
· Light weight
· Good sound insulated
· Heat Insulated
· Waterproof/ Water fast : Near about 0% moisture absorption.
· Fire proof.
· Energy Efficient
· Environmental, Ecofriendly.
· Civilized and convenient construction
· High Intensity without deformation.
Sandwich Panel is a kind of light weight energysaving wall material, taking calcium siliconboard
(fiber cement board) as face panel, cement, EPS, fly ash as filler and formed by one time
compound. It can widely be applied to wall materials of various high and low
buildings such as: Bank, office building, hospital, school, hotel, shopping mall, amusement hall,
old house reconstruction, residence and workshop.
Composite exterior insulation board production line is our company new
product developed successfully referring to advanced technology and
experience from home and abroad.
It is the great invention of the exterior insulation board realizing industrial
production, and we have applied for many national patents.
This production line consists of 3 parts:
1. fully-auto mixing system
2.automatic board-making machine
3.automatic cutting saw
Our Light weight,good sound insulated, heat insulated, water fast, fire proof,
Environmental, Ecofriendly Sandwich
Panels will bring you an relax construction process.
|
Model |
Unit |
SJ-XPS-FA |
|
Automatic feeding and mixing material system |
set |
1 |
|
Panel composite forming system |
set |
1 |
|
Panel transport system |
set |
1 |
|
Thickness of product |
mm |
2-200 |
|
Width of product |
mm |
600,900,1200 |
|
Length of product |
mm |
600,900,1200,2400,3000 |
|
Production speed |
m/min |
2-6 |
|
Total power(approx) |
kw |
45 |
|
Overall size(L*W*H)(apporx) |
m |
42*4*4 |
