Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech

Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech
Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech

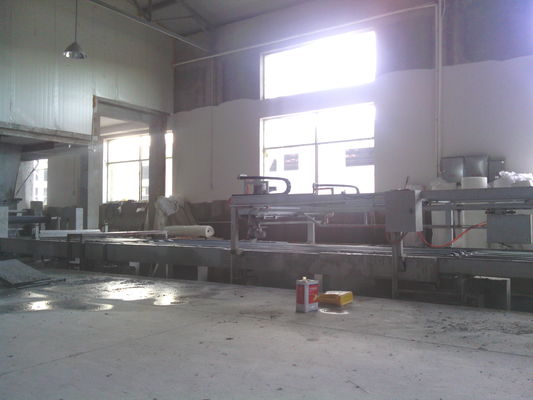

Large Image :  Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech

Product Details:
Place of Origin: CHINA
Brand Name: chuangxin
Certification: ce
Model Number: XD-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: negotation
Packaging Details: packing
Delivery Time: 30 days
Supply Ability: 10 sets per month

Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech

Description
Production Capacity: 2000sqm Warranty: 1 Years
Automatic Grade: Automatic
High Light:

wall making machine

,

roof panel roll forming machine

Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech
XD-DB Full Automatic Sandwich wall board Production line,Wall Panel Making Machine,wall board
 (II) Feature
1. Anti-earthquake with light quality: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.
2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and sticked.
3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.
4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.
5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.
6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
IV. Production Conditions
Wall board production line has workshop and raw material warehouse. Workshop: over 300m2-800 m2, worker: 10-16 person; fresh water; electricity:8-20KW
V. Benefit Analysis
 (I) Cost accounting
Raw material: 19-25 Yuan/ m2 (according to different thickness); Wage: 1 Yuan/ m2
Water-electricity fee: 0.5 Yuan/ m2; Depreciation of the equipment: 0.2Yuan; Management fee: 1 Yuan/ m2
Total: 21.7 Yuan~27.70 Yuan/ m2
 (II) Profit analysis: (Take the small-scale equipment as example), production: 800 m2 per day, at the price of 58 Yuan/ m2 to sell, and then the profit per day is that 800 m2 ×58 Yuan/ m2-800 m2×21.7~27.70=29040~24240 Yuan.
V. Attention



I   Equipment Feature

 This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading

no-woven cloth, compounding and repressing. The equipment runs stably with high

 automatic degree, and the specification of its product can be adjusted arbitrarily.

The equipment actually realizes the industrial production-line of new model building

wall board, and the product have even and glazed surface with high compactness.

The equipment largely reduces the labor intensity of worker and thoroughly

many shortages of the former casting forming with upright mould or flat mould,

such as large mould usage, low recycling rate, required electrical heating or steam

 heating, single kind of product as well as the sound insulation and heat-preserving

 which don’t meet the market requirements.



II Project Feature

  Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech 0Sandwich Lightweight Wall Panel Machine with Double Drive Double Roller Extruding Tech 1

1. The source of the production raw materials is widely with no regional restriction.

 The product is made of sawdust, straw (rice hulls), many kinds of crop straw and

 inorganic material (such as talcum powder, infusorial earth and powder coal ash)

 after special technology. So this project have low production cost, small investment

 and fast effectiveness.



2. The equipment has high automatic degree, simple production technology, low

labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.



3. Low production energy consumption. With the influence of chemical reaction, it

can meet the requirements about production technology without high temperature

and high pressure.

Product Feature and Performance

Performance



1

Air-dry density

≤ (Standard index)50kg/m2

(Test Value)

30.0kg/ m2

2

Drying shrinkage

 rate of the board

≤0.08%

0.015%

3

Anti-breaking load

≥1400N

5640N

4

Anti-impact

No breakage phenomenon

 such as cracking afte

 three impacts

No breakage

phenomenon such as

cracking after three

 impacts

5

Thermal resistance

of main section (T=90mm)

≥1.35(m2.k)/w

≥1.36(m2.k)/w

6

Thermal bridges area ratio

≤8%

2.22%

7

Sound insulation Index



36dB

8

Radioactivity



None














III  Feature

 1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.

2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and stuck.

3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.

 4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.

5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.

 6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
