Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board

Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board
Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board

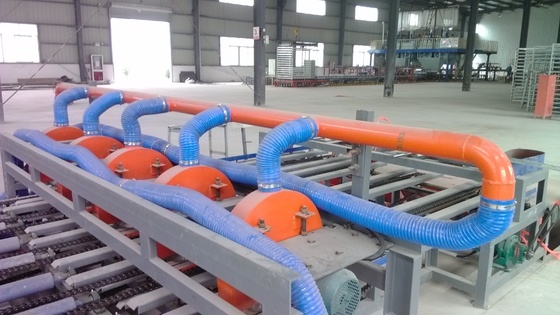

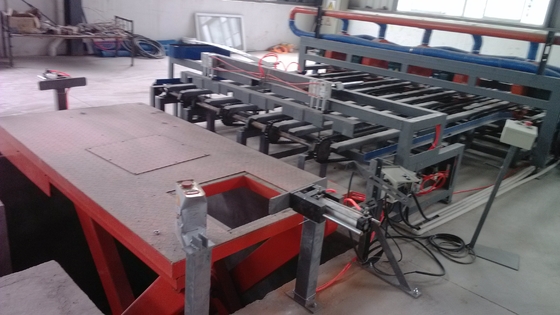

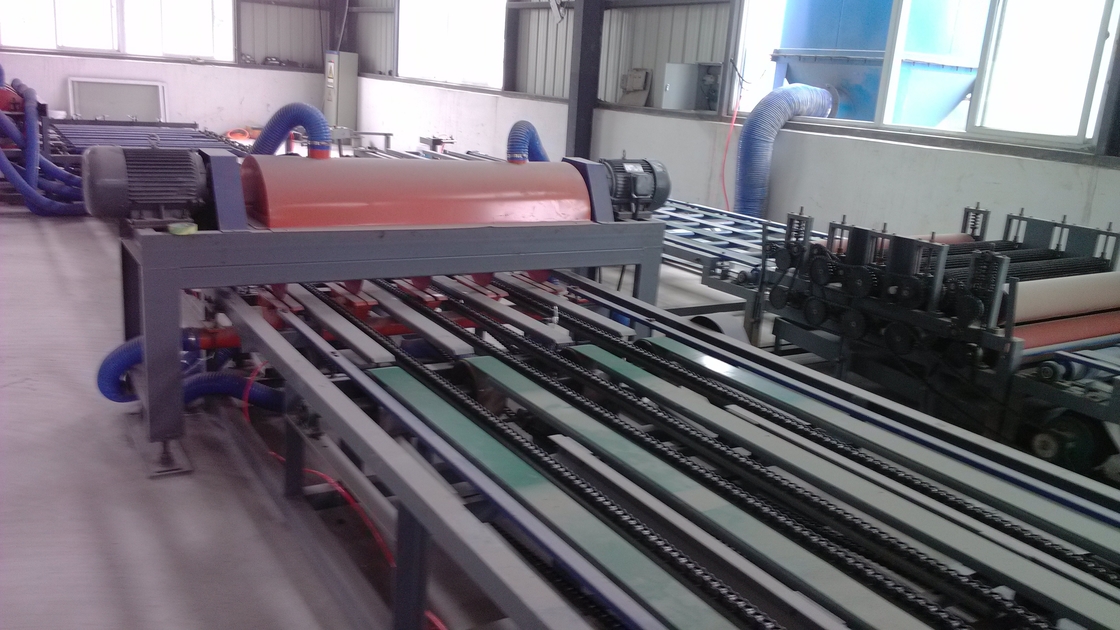

Large Image :  Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board

Product Details:
Place of Origin: CHINA
Brand Name: chuangxin
Certification: ce
Model Number: XD-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: negotation
Packaging Details: packing
Delivery Time: 30 days
Supply Ability: 10 sets per month

Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board

Description
Production Capacity: 2000sqm Warranty: 1 Years
Automatic Grade: Automatic
High Light:

roof panel roll forming machine

,

eps sandwich panel production line

Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board


New-type (Mgo) Sandwich Wall Panel Making Machine/fiber cement sandwich wall board machine

I   Equipment Feature

 This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading

 no-woven cloth, compounding and repressing. The equipment runs stably with high

 automatic degree, and the specification of its product can be adjusted arbitrarily.

 The equipment actually realizes the industrial production-line of new model building

 wall board, and the product have even and glazed surface with high compactness.

The equipment largely reduces the labor intensity of worker and thoroughly changes

 many shortages of the former casting forming with upright mould or flat mould,

such as large mould usage, low recycling rate, required electrical heating or steam

 heating, single kind of product as well as the sound insulation and heat-preserving

which don’t meet the market requirements.



II Project Feature



1. The source of the production raw materials is widely with no regional restriction.

 The product is made of sawdust, straw (rice hulls), many kinds of crop straw and

 inorganic material (such as talcum powder, infusorial earth and powder coal ash)

 after special technology. So this project have low production cost, small investment

and fast effectiveness.



2. The equipment has high automatic degree, simple production technology, low

labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.



3. Low production energy consumption. With the influence of chemical reaction, it

can meet the requirements about production technology without high temperature

 and high pressure.

Product Feature and Performance

Performance



1

Air-dry density

≤ (Standard index)50kg/m2

(Test Value) 30.0kg/ m2

2

Drying shrinkage

 rate of the board

≤0.08%

0.015%

3

Anti-breaking load

≥1400N

5640N

4

Anti-impact

No breakage phenomenon

 such as cracking after

 three impacts

No breakage

 phenomenon such as

cracking after three

 impacts

5

Thermal resistance

of main section (T=90mm)

≥1.35(m2.k)/w

≥1.36(m2.k)/w

6

Thermal bridges area ratio

≤8%

2.22%

7

Sound insulation Index



36dB

8

Radioactivity



None


  Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board 0Cold Pressure Wall Panel Making Machine for Fiber Cement / Mgo Sandwich Board 1

III  Feature

 1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10

 of red brick wall, the product has good anti-earthquake performance. It can be used

 at low-rise building and high-rise building, and it is preferred to be used at workshop

 with steel frame structure. It can replace the color steel plate with its better

performance.

2. Fast and convenient operation: It can be installed by board or combination with

 the dry method, and the product can be nailed, cut, planed, drilled and stuck.

3. Low comprehensive cost: The product is made of agricultural and industrial

wastes, so the production cost is low. With the low load of girder and short

 construction period, it can reduce over 20% of engineering cost after compared with

 solid brick and hollow brick.

 4. Energy-saving and environmental protection: The production processing need no high

temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and

radioactivity.

5. Increasing the usage area: Under the same condition of heat-preserving and

sound insulation, with the thinner plate, the product can increase over 10% usage

area after compared with the same building.

 6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
