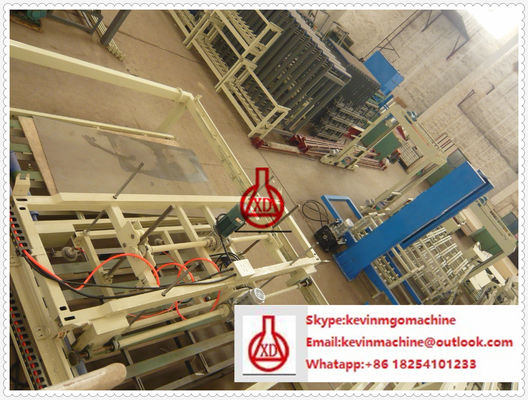

75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition

75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition
75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition 75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition 75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition 75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition

Large Image :  75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition

Product Details:
Place of Origin: CHINA
Brand Name: chuangxin
Certification: CE
Model Number: XD-1
Payment & Shipping Terms:
Minimum Order Quantity: 10 sets
Price: 30000USD
Packaging Details: wood packing
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 10 set per month

75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition

Description
Texture Of Materia: Steel Production Capacity: 1500 Sheets
Automatic Grade: Automatic Function: Fiber Cement Board
High Light:

fiber cement board machine

,

sheet rolling machine

75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition



Light Weight Fiber Cement Sandwich Panel Machine Automatic Fiber Cement Board Making Machine

Product Description

Light weight wall panel

It composed by cement, fly ash, EPS, addictive, and others, and calcium silicate board.

Material: EPS /Fly ash/ Cinder/ Perlite/ Sand/ Rice husk/ Wood dust/ Wheat straw powder/Ceramic sand etc

Application: Interior and exterior partition on steel or concrete structure building.
Advantages:

1. Light weight: 75mm thick wall panel is 60kg/m2
2. Fire proof: Endure fire at 1000 degrees for over 4 hours
3. Water-proof & Damp-proof
4. Sound Insulation: The sound insulation capacity of a 90mm thick board is 42dB
5. Thermal Insulation & Heat Insulation
6. Better earthquake resistance and overall stability: Resist earthquake of up to 8 degrees
7. Easy installation: An experienced workers could install 35m2/day.

Item

Unit

Standard Fiber Reinforced Calcium Silicate Board
Density g/cm 3 <1.3
Anti-bend strength MPa >9
Heat conduction modulus w/m.k <0.29
Anti-impact strength kJ/mm 2 >2.0
Pull force of screw N/mm >75
Dry shrinkage rate % <0.2
Non-burn performance   In accordance with standard GB8624  First Class Non-burn Material
        , but no water drop
High density 1.4≤ D≤ 1.7 ≤ 28

__

Compressive Strength ~20 MPa (3, 000 PSI)
Impact Resistance > 6 kJ/m2
Tensile Strength > 5.5 MPa
Density (Specific Mass) ~1000 Kg/m3 (+/-< 2%)
Moisture Absorption ~26% maximum saturation (slow absorption rate)
Moisture Content ~6%
Water Vapour Diffusion ~28 / 35
Specific Heat ~930 J/kgK
Thermal Conductivity ~0.44 W / mK
Modulus of elasticity ~6045 N/mm2
Flexibility
UNI E 12372
~20.1 N/mm2 maximum
12mm x 1220 x 2440 = 10 N/mm2
Surface Alkalinity ~10 Ph
Thermal Expansion Hot/Cold 0, 01 mm/mC (from temp +20C to -20C)
Expansion in Water less than < 0.02% from ambient to saturation
Freeze / Thaw - UNI EN 520 100 cycles without notable effects
Frost Resistance no water drops form on surface
Combustibility / Fire Ratings non-combustible / 12mm exceeds 1 hr fire rating
Dimensional tolerance thick 0.2mm / width 2mm / length 3mm / Sq. 3mm
Toxicity Pollutants Heavy Metals - UNI EN 12457-2 Below measurable levels of test instruments
Asbestos Analysis Absent - not measurable
Formaldehyde Analysis Absent - not measurable
Sound Attenuation (9mm) tested design ASTM E90 = STC 48, 50, 55, & 60
Color Slate Grey and Chalk White
Surface texture smooth one side; uniform machine textured back
Basic Compounds (MgO)+(natural silicates)+(glass fibre)+(wood fibre)

     75mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition 075mm Thick Wall Panel Fiber Cement Board Production Line for Structure Building Partition 1
