Product Details:
|
| Product Name: | Mgo Board Machine | Production Capacity: | 1500 Sheets |
|---|---|---|---|
| Texture Of Material: | Steel | Warranty: | 1 Years |
| Automatic Grade: | Automatic | Raw Material: | Mgo,mgcl,fiber Glass Mesh |
| Standard: | CE | Type: | Free Standing |
| Highlight: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||

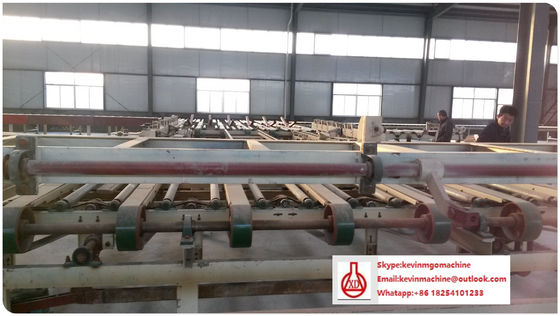

MgO Board Production Line for MgO / MgCl2 / Fiberglass Cloth / Sawdust Main materials
fireproof mgo board making production line with 1500 sheets capacity
Take magnesium oxide board machinery asia for example:
1.Capacity :
2million sqm/300 days (basis of calculation:L:2440mm,T:8mm,W:1220mm,
weight:7kg/M2)
2. Automation: semi degree automatic and high degree automatic
3. Main materials:
MgO,MgCl2,Fiberglass cloth,Non-woven cloth,Sawdust/perlite
4. MGO board specification:
|
length(mm)
|
2400,2440
|
|
width(mm)
|
1200,1220 |
|
thickness(mm)
|
5,6,8,9,9.5,12,12.5,15,18 |
|
discrepancy of the thickness |
0±0.25 |
|
discrepancy of the diagonal |
≤3 |
5. Bried Introduction
The magnesium oxide board production line is highly automatic and reduces
workforce. The products is formed one time. The products is smooth and uniformly.
The design production line is new on the idea,reasonable on
the structureand stable while working. The finished products replaced of wooden
materials are more and more
recognized by people. The number of glass magnesium board used grows more
and more. According to
authoritative forecast, the number of use of this material is increasing 15% year by
year. Use of glass magnesium
board is the best way to protect forest resource and save trees, as well as the best
alternative to wooden
decorative board.
6.Service
1.We offer technical support until the workers know how to operate.
2.We offer the technology data and relative files of gypsum powder production line. The Operating Instruction
will go to the customers with the equipment.
3.We provide free answers for all kinds of questions about the gypsum board production line.
4.We provide lifelong guidance of above equipment.Visit client in regular times.
5.Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.
6.We can help the customer to do the consignment and the relevant procedure for import and export.
4. Machine Advantage
Project Feature
1. The source of the production raw materials is widely with no regional restriction. The product is made of sawdust, straw (rice hulls), many kinds of crop straw and inorganic material (such as talcum powder, infusorial earth and powder coal ash) after special technology. So this project have low production cost, small investment and fast effectiveness.
2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.
III. Product Feature and Performance
(I)Performance
1 |
Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
