|Product Name:||Mgo Board Machine||Production Capacity:||1500 Sheets|
|Texture Of Material:||Steel||Warranty:||1 Years|
|Automatic Grade:||Automatic||Raw Material:||Mgo,mgcl,fiber Glass Mesh|
sandwich panel machine,
polyurethane sandwich panel machine
Adjustable Thickness Gypsum Board Production Line , Automated Wall Panel Equipment
Automtaic MGO And Fiber Cement Board Machinery Line with larger capacity
(1) raw materials supply
1.1 The main raw material of magnesium oxide board :
Magnesium oxide,Magnesium chloride, None-woven fabric, Glass
firber.,Sawdust ,Straws and Perlite
1.2 magnesium oxide warehouse
1.3 magnesium chloride solution pool(suggestion uses two dissolve pool and matches mixing equipment)
1.4 pearlite storage(independent) different thickness of the plank use different degree of material.
1.5 sawdust storage(independent) different thickness of the plank uses different degree of material.
(2) second maintenance equipment,
2.1 On-the-shelf equipment
Maintenance workshop need 1000 square meters ,which are ventilated in summer, and insulated in winter.
2.2 off-the-shelf equipment
2.2.1 conveying out board and templates from bracket.
2.2.2 separation area, separated board with templated , board complete stacking by labor,and template delivery into cleaning area. (need some flat cars)
2.3 auxiliary equipment
One boiler: choose big air blower,so that hot air get through maintenance workshop by pipe, make maintenance workshop reaches constant temperature, humidity. Temperature keep in 35-45 degrees , humidity is not less than 100%. Need air flow.
2.3.2 Clearing mold area:Two groups of four workers in charge of clear template, and send cleared template into the molding line equipment.
(3) choosing board, cutting, sealing side, packing,
3.1 cutting equipment: 1 set of cutting machine . Dust catcher and air blower.
3.2 Selecting board: selecting and packing board by labor..
3.3 packing ( counting and packing stacking board, this work need 4 person who will be divided into 2 groups).
Need 4 pcs bubble board pools : 3 meters * 3 meters

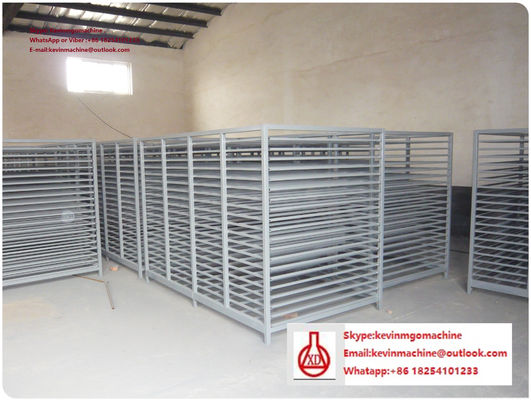

Need 1000 square meters bleachery ,which include drying rack (2.28 meters * 6 meters * 0.7 meters so that it can dry 50 pieces of board).
Magnesium board production quantity is based on the number of template.The equipment is the same.
MgO, MgCl2, perlite, saw dust, etc
Finished board size
Thickness: 3 to 40mm, length: 2400 to 3600mm
White, pink, grey, etc
Finished board type
can produce common board or coated board
MGO Board Production Line Specification:
|Product name||high capacity mgo board making machine|
|Other name||Fireproof mgo board Line|
1.Reasonable design,good manufacturing process,great appearance design,high efficiency of automation.
2.The finished board don’t need high temperature drying, air drying and watering,
and under the normal temperature, they will dry well indoor.
3. High Intensity without deformation
4. This is a green environmental protection project because that there is no waste water materials and waste gas during processing.
1.We offer technical support until the workers know how to operate.
2.We offer the technology data and relative files of gypsum powder production line. The Operating Instruction
will go to the customers with the equipment.
3.We provide free answers for all kinds of questions about the gypsum board production line.
4.We provide lifelong guidance of above equipment.Visit client in regular times.
5.Excellent easy-broken parts support for buyers. Easy-broken parts guarantee for one year.
6.We can help the customer to do the consignment and the relevant procedure for import and export.
4. Machine Advantage
1. The source of the production raw materials is widely with no regional restriction. The product is made of sawdust, straw (rice hulls), many kinds of crop straw and inorganic material (such as talcum powder, infusorial earth and powder coal ash) after special technology. So this project have low production cost, small investment and fast effectiveness.
2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.
III. Product Feature and Performance
|Air-dry density||≤ (Standard index)50kg/m2||(Test Value) 30.0kg/ m2|
|2||Drying shrinkage rate of the board||≤0.08%||0.015%|
|4||Anti-impact||No breakage phenomenon such as cracking after three impacts||No breakage phenomenon such as cracking after three impacts|
|5||Thermal resistance of main section (T=90mm)||≥1.35(m2.k)/w||≥1.36(m2.k)/w|
|6||Thermal bridges area ratio||≤8%||2.22%|
|7||Sound reduction Index||36dB|
