Product Details:
|
| Production Capacity: | 2000sqm | Warranty: | 1 Years |
|---|---|---|---|
| Automatic Grade: | Automatic | ||
| High Light: | roof panel roll forming machine,eps sandwich panel production line |
||

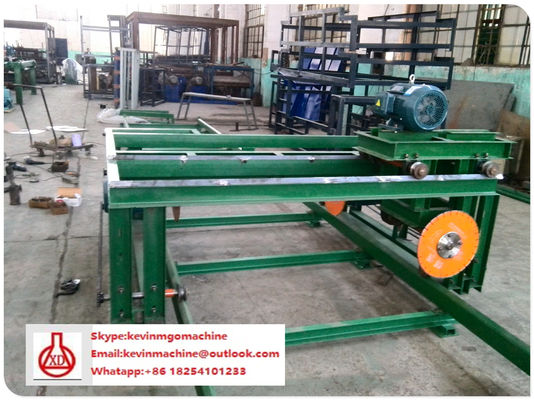

MGO Hollow Core Wall Panel Machine , Anti Impact Fiber Cement Board Production Line
MGO hollow core wall panel making machine And Fiber Cement Board Production Line
The features of the wall panel:
1. heat insulation
2. sound insulation
3. water insulation
4. moisture insulation
5. A grade fire protection
6. the panels could be reused
7. high strength,lightweight ,shock resistance ;
8. the coal ash and industrial solid wastes as raw material,energy saving ; environmental friendly ;
9. increasing the floor area of the building
10. Installation is fast and simple,shortening the construction period,saving labor lost and comprhensive cost ;
11. wall panel testing
|
|
Item | National Standards | Testing Indexes |
| 90mm | 90mm | ||
| 1 | Anti-impact Capacity | ≥5 | ≥10 |
| 2 | Anti-bending damage load | ≥1.5 | ≥4 |
| 3 | Compressive strength/Mpa | ≥3.5 | ≥5 |
| 4 | Softening coefficient | ≥0.80 | ≥1 |
| 5 | Facial surface density g/cubic meters | ≤90 | ≤70 |
| 6 | Water absorption | ≤10 | ≤9 |
| 7 | Drying shrinkage% | ≤0.6 | ≤0.5 |
| 8 | Hanging force/N | ≥1000 | ≥1500 |
| 9 | Sound insulation/dB | ≥35 | ≥50 |
| 10 | Fireproof limit/h | ≥1 | ≥3 |
| 11 | Heat transfer coefficient w/m2 | ≤1.0 | ≤1.0 |
| 12 | Radioactivity limit | ≤1.0 | ≤1.0 |
| 13 | IRa(interior radiation indexes) | ≤1.0 | ≤1.0 |
| 14 | lr(exterior radiation indexes) | ≤1.0 | ≤1.0 |
|
1 |
Air-dry density |
≤ (Standard index)50kg/m2 |
(Test Value) 30.0kg/ m2 |
|
2 |
Drying shrinkage rate of the board |
≤0.08% |
0.015% |
|
3 |
Anti-breaking load |
≥1400N |
5640N |
|
4 |
Anti-impact |
No breakage phenomenon such as cracking after three impacts |
No breakage phenomenon such as cracking after three impacts |
|
5 |
Thermal resistance of main section (T=90mm) |
≥1.35(m2.k)/w |
≥1.36(m2.k)/w |
|
6 |
Thermal bridges area ratio |
≤8% |
2.22% |
|
7 |
Sound insulation Index |
|
36dB |
|
8 |
Radioactivity |
|
None |
III Feature
1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.
2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and stuck.
3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.
4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.
5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.
6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
