Product Details:
|
Production Capacity: | 2000sqm | Warranty: | 1 Years |
---|---|---|---|
Automatic Grade: | Automatic | ||
Highlight: | wall panel equipment,Wall Panel Making Machine |

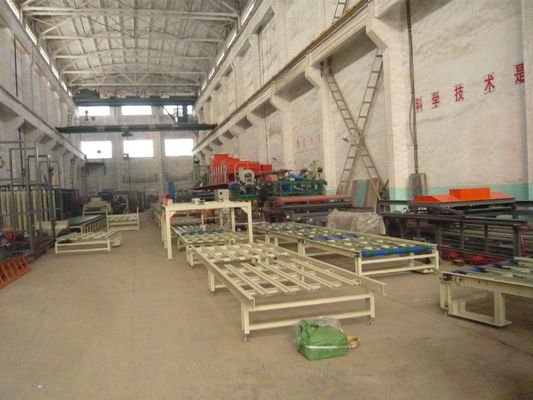

Magnesium Oxide Board Production Line with Double Drive Double Roller Extruding
full automatic mgo board panel making machines production line in China building material machinery
1. The source of the production raw materials is widely with no regional restriction. The product is made
of magnesia, mgcl2,fiber glass mesh, on-woven fabrics and other fillers. The board is formed one-time by the machine.
It is easy operation, low production cost, small investment and fast effectiveness.
2. The automatic mgo board production line in China has high automatic degree, simple production technology, low labor intensity and production line, and
there is no noise and three-wastes (waste water, waste gas and waste residue) during production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the
requirements about production technology without high temperature and high pressure.
4. It can produce according to different customers' request like size (length* width*thickness) , material .This automatic mgo board production line in China can produce boards Max length 3660mm and width is 1250mm.Thickness from 3-25mm.
B. Equipment Feature:
This automatic mgo board production line in China adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading no-woven cloth,
compounding and repressing.
fireproof mgo board production line. It runs stably with high automatic degree, the specification of its product can be adjusted arbitrarily.
The equipment actually realizes the industrial production-line of new model building wall board, and the product have even and glazed surface with high compactness.
The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages
of the former casting forming with upright mould or flat mould, such as large mould usage, low recycling
rate, required electrical heating or steam heating, single kind of product as well as the sound insulation and
heat-preserving which don’t meet the market requirements.
Hi-tech mgo gypsum board production line Instruction:
Hi-tech mgo gypsum board production line is our company new product developed successfully referring to advanced
technology and experience from home and abroad.
It is the great invention of the exterior insulation board realizing industrial
production, and we have applied for many national patents.
Hi-tech mgo gypsum board production line consists of 3 parts:
1. Fully-auto mixing system
2. Automatic board-making machine
3. Automatic cutting saw
We are professional manufacturer of different kinds of lightweight wall panel machines----precast hollow core wall panel machine, eps concrete sandwich wall panel machine, ceramsite block machine, fence wall panels made of construction waste etc. Our advantage is that we not only make the machines, but also make the panels, so we have rich experience.The most important part of our advantage is not only about the machine, but also about the formulation. How to make the best-quality panels at the lowest price according to the materials which the customers have in their countries is our main purpose. We can make the best formulation for our customers because we have rich experience in this field. The materials of making this kind of panels can be cement, fly ash, leca, perlite, eps, gypsum, Mgo, Mgcl2/Mgso4, wood saw powder, crushed plant straws, etc.
1) Product quality: product quality is priority to the international standard GB/T9775-1999 (equal to European Standard).
2) The gypsum board which produced by the gypsum board production line is heat-resistant, fire-resistant, insulated, light, nonpoisonous, little pollution, adjusting the humidity of the room.
3) We can offer a basket of services of design, producing, installation, commissioning and training, as well as turnkey project for customers.
No. |
Test Item |
National standard |
Wall panel testing |
1 |
Compressive strength |
≥3.5MPa |
≥3.7MPa |
2 |
Drying shrinkage |
≤0.6mm/m² |
0.37mm/ m² |
3 |
Hanging force |
≥1000N 24hours No 0.55mm crack in 24hours |
≥1000N 24hours No 0.55mm crack in 24hours |
4 |
shock resistance |
without crack shocked by 30kgs sandbag five times |
without crack shocked by 30kgs sandbag five times |
5 |
The bending failure load |
≥1.5 times of the self weight of the wall panel |
≥2.5 times of the self weight of the wall panel |
6 |
radioactivity |
Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
7 |
density |
≤90kgs/m² |
≤43kgs/m² |
8 |
Air insulation of sound |
≥35dB |
≥43dB |
9 |
Fire resistance limit |
≥1 h |
≥ 1h |
