Moisture Resistant Magnesium Oxide Board Production Line With Double Working Station

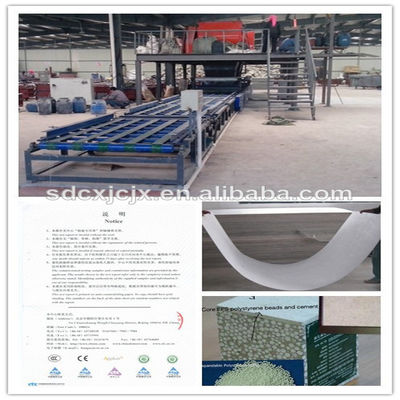

Large Image : Moisture Resistant Magnesium Oxide Board Production Line With Double Working Station

Product Details:

Place of Origin:	China
Brand Name:	chuangxin
Certification:	CE
Model Number:	XD-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	30 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets per year

Contact Now

Moisture Resistant Magnesium Oxide Board Production Line With Double Working Station

Description

Product Name:	Mgo Board Machine-B	Warranty:	1 Years
Automatic Grade:	Semi Automatic	Raw Material:	Mgo,mgcl,fiber Glass Mesh
Standard:	CE 3C
High Light:	gypsum board production line , fiber cement board production line

1. Fireproof-Grede A
2. Moisture resistant
3. Excellent impact resistant
4. Excellent sound insulation
5. 100% no asbestos
6. Light weight and easy to work

>Size:
*Thickness: 3mm-25mm
*Standard size: 1200*2400mm; 1220*2440mm
*The Max length is 3660mm and the max width is 1220mm
*other sizes can be cut as per requirements.
*Surface treatment: Slurry, Non-slurry and Laminated with HPL and PVC
*Backside treatment: Texture and sanded
*Edge: Square/Tapered/Beveled/grooved

Application:
>Part ion wall indoor and outdoor
>Ceiling
>Acoustic perforated wall
>Core of fireproof door
Product Description

Wall panel production line:
Main System:
Molding machine/mixing system/grouting system/demould machine for wall panel drawing out/turnover system

Overall dimention of the moulding(mm)	3030x2500x1200
Total power	23KW
Power of heating system(KW)	20
Power of hydraulic system(KW)	3
Hydraulic working pressure(Mpa)	8
Maximum Hydraulic working pressure(Mpa)	16
Capacity of hydraulic tank (L)	70
Wall panel size/Qty	50mm	10pieces
	100mm	10pieces
	150mm	7pieces

Moisture Resistant Magnesium Oxide Board Production Line With Double Working Station 0
