Product Details:
|
| Raw Material: | Mgo/mgcl2/sawdust | Panel Width: | 1300mm |
|---|---|---|---|
| Pressure: | 380V | Cerification: | CE |
| Warranty: | 1 Year | Application: | Making Board |
| Size: | 25m*1.58m*1.78m | ||
| High Light: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||

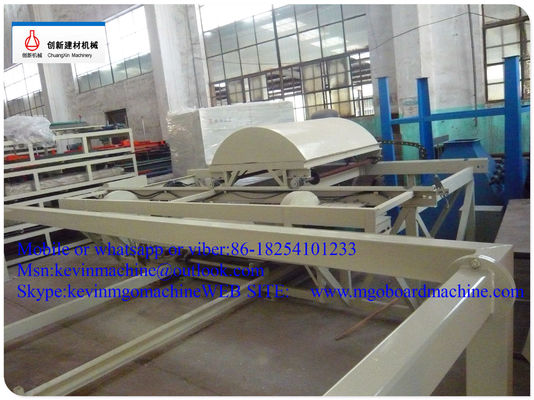

1300mm Width ,Unlimited Length Mgo Sandwich Panel Production Line With High Quality
1. brief description
The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree,the board with the thickness of 2-25mm, the biggest width of 1,300mm and unlimited length .so you can adjust the thickness of board at will. the standard specification of the board is 1.22m*2.44m.
2. Technoloy features
There is not any requirement about high temperature and high pressure during production processing .the boarad will be formed at one time after roller-extruding under the conditions of normal temperation and normal pressure .this is a green environmental-protection project, because that there is no waste water ,waste materials and waste gas during its production processing .the finised board don’t need high temperature drying ,air-drying and watering ,and under the normal temperature ,they will dry well indoor .
| Equipment parameters | Description |
| Raw material | Mgo/mgcl2/fiber glass mesh |
| Texture of material | steel |
| Automatic degree | Fully/semi automatic |
| Finsihed board size | Thickness:2-25mm,unlimited length ,width:1300mm |
| Color | Blue ,red,etc |
| Capacity | Maximum 1500 sheets/shift(8 hours) |
3. The one machine can manufacture several board
1) simulated wooden board :After national grade testing ,its appearance is the same as that of the wooden board ,and its decorating effect, performance and performance-to-price atio are all better than the same board .with a large breadth ,it not only has the features which the wooden board owns ,such as nailed ,sawed ,planed and stuck,but also don’t need painting ,so it is green environment-friendly. For example : simulation beech board red(black) walaut board and bubinga(canthor).
2) Fireproof embossed door:after province-level detection ,it has such features:fireproof ,water-proof ,sound insulation ,heat preservation,variety and low cost.
| Oxygenic index % | >90 |
| Level combustion | SO |
| Vertical combustion | SO |
| Water content rate | 10.9% |
| Capacity | 1.15g/cm3 |
| Static bending intentsity | 169.46Mpa |
| Density | T/m3 1.13 |
3) Wall decorating mural painting:The board produced by the board-making machine can be made into various decorating art mural painting about landscape, flower-and-bird,insect-and-fish as well as character.the product gets popularity from customers with excellent quality and reasonable price
4) Vent-pipe :The polystylrene sandwich panle produced by this machine can be made into the vent-pipe used by the central air-conditioning system and all kinds of ventilation facility ,and the product is fireproof ,damp-proof,antiseptic,light-weight,heat-preservation ,long-performance life and low-price.In view of the above features,it wins much favor from users.
5) Building mould board :The strengthened mould plate with this technology can replace steel mould board ,bamboo&wood mould board and multiayer board .Being a high-profit product ,this board is applied widely in all kinds of concrete engineering with low-cost,high strength,long life and convenient to use .the board is high-profit product
In addition , in view of unique effect and great profit,various embossed board with decorative pattern and glazd pantile can replace carved wall board of wallpaper
| Advantages | ||
| Number | Item | Content |
| 1 | Low cost | Low labour and raw materials costs |
| 2 | Long life | Up to 30 years |
| 3 | Recycling use | Reused for more than 8 times |
| 4 | Environment protection | Environment-friendly raw materials used |
| 5 | Flexible layout | adjusted according to your requirement |
