Product Details:
|
Raw Materials: | Mgo/mgcl/sawdust | Type: | Free Standing |
---|---|---|---|
Texture Of Material: | Steel | Capacity: | 1200 Sheets |
Panel Width: | 1300mm | Warranty: | One Year |
Ceritification: | CE | Power: | 54KW |
Highlight: | Construction Material Making Machinery,polyurethane sandwich panel machine |

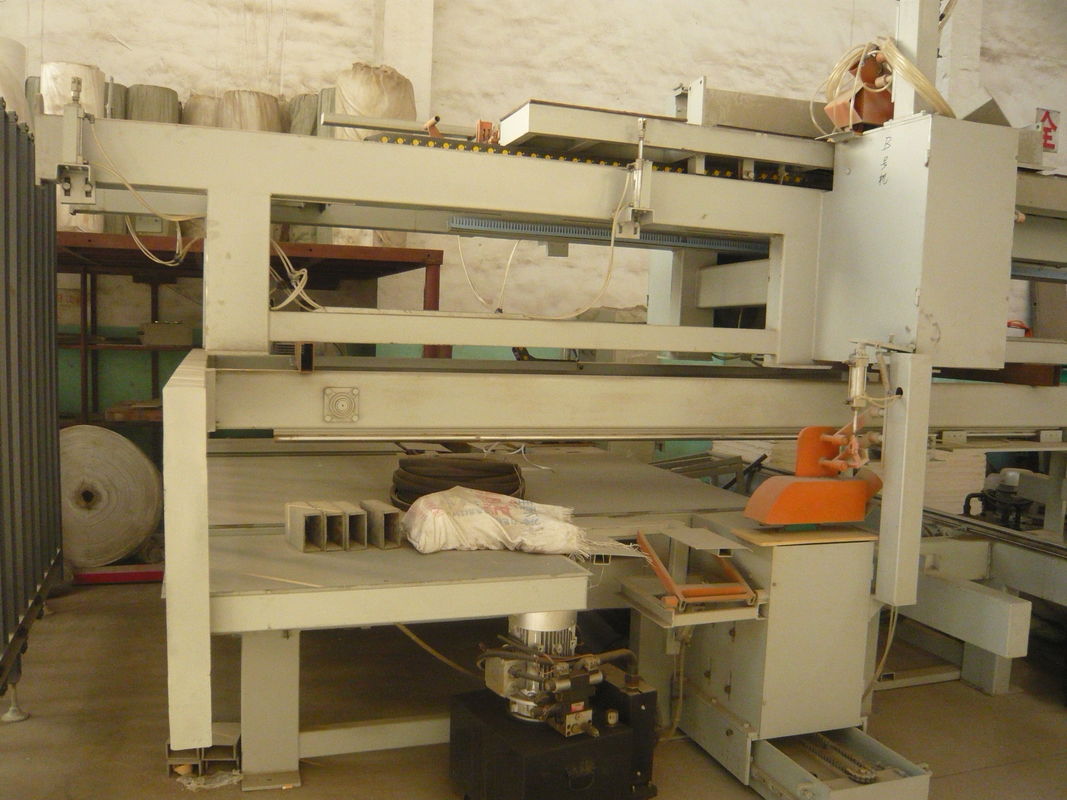

Medium Capacity Factory Magnesium Oxide Wall Board Machine With Steel Materials
Product information
Equipment parameters | Description |
Raw material | Mgo/mgcl2/fiber glass mesh |
Texture of material | steel |
Automatic degree | Fully/semi automatic |
Finsihed board size | Thickness:2-25mm,unlimited length ,width:1300mm |
Color | Blue ,red,etc |
Capacity | Maximum 1500 sheets/shift(8 hours) |
Structure principle and specification
Production line for mgo board with fashionable design ,reasonable structure, stable running manufactures even thickness board in large production once through double ways roll-in technology .This production line is equipped with shaking device which can remove inside and outside air bubble .so our board is more compact .in addition,we use the no-woven cloth as the separating film to increase the toughness and the strength of the board .The machine can be adjusted arbitrarily ,and then produce the board with the thickness of 2-25mm,the biggest width of 1,300mm and unlimited length .so you can adjust the thickness of board at will.
The one machine can manufacture several board
simulated wooden board :After national grade testing ,its appearance is the same as that of the wooden board ,and its decorating effect, performance and performance-to-price atio are all better than the same board .with a large breadth ,it not only has the features which the wooden board owns ,such as nailed ,sawed ,planed and stuck,but also don’t need painting ,so it is green environment-friendly. For example : simulation beech board red(black) walaut board and bubinga(canthor).
Fireproof embossed door:after province-level detection ,it has such features:fireproof ,water-proof ,sound insulation ,heat preservation,variety and low cost.
Wall decorating mural painting:The board produced by the board-making machine can be made into various decorating art mural painting about landscape, flower-and-bird,insect-and-fish as well as character.the product gets popularity from customers with excellent quality and reasonable price
Vent-pipe :The polystylrene sandwich panle produced by this machine can be made into the vent-pipe used by the central air-conditioning system and all kinds of ventilation facility ,and the product is fireproof ,damp-proof,antiseptic,light-weight,heat-preservation ,long-performance life and low-price.In view of the above features,it wins much favor from users.
Building mould board :The strengthened mould plate with this technology can replace steel mould board ,bamboo&wood mould board and multiayer board .Being a high-profit product ,this board is applied widely in all kinds of concrete engineering with low-cost,high strength,long life and convenient to use .the board is high-profit product
In addition , in view of unique effect and great profit,various embossed board with decorative pattern and glazd pantile can replace carved wall board of wallpaper
Raw materials and cost analysis
this product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding .the source of raw mataerials is widely anf they are purchased easily.as follow
Take 1200mm*2400mm*8mm mgo baord an example in China
MGO BOARD CONSUMPTION COMPARABLE TABLE
Names of materials | Each dosage |
Magnesium | 2.978 yuan |
Magnesium chloride | 1.23 yuan |
Non-wovens | 0.85 yuan |
Glass cloth | 1.05 yuan |
Perlite | 0.62 yuan |
Sawdust | 0.647 yuan |
Production conditions
The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree, this production line is divided into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)
Advantages | ||
Number | Item | Content |
1 | Low cost | Low labour and raw materials costs |
2 | Long life | Up to 30 years |
3 | Recycling use | Reused for more than 8 times |
4 | Environment protection | Environment-friendly raw materials used |
5 | Flexible layout | adjusted according to your requirement |
