Product Details:
|
| Raw Material: | Mgo/mgcl2/fiber Glass Mesh | Capacity: | 1100 Sheets/shift |
|---|---|---|---|
| Warranty: | 1 Year | Materials: | Steel |
| Use: | Making Board | Power: | 54KW |
| Panel Width: | 1300mm | Frequency: | 50HZ |
| Highlight: | fiber cement board machine,sheet rolling machine |
||
light weight concrete panel cement fiber board construction making machine
Application:
Interior and exterior partition on steel or concrete structure building.
For New Construction, Additions,or Renovations.
Special Features:
Different Wall Thickness: 60mm, 75mm, 90mm,100mm, 120mm, 150mm,180mm.
Maximum width: 610mm.
Length: According to your demands, engineering requirements, and shipment conditions.
Advantages:
· Light weight
· Good sound insulated
· Heat Insulated
· Waterproof/ Water fast : Near about 0% moisture absorption.
· Fire proof.
· Energy Efficient
· Environmental, Ecofriendly.
· Civilized and convenient construction
· High Intensity without deformation.
1 |
Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
Production conditions

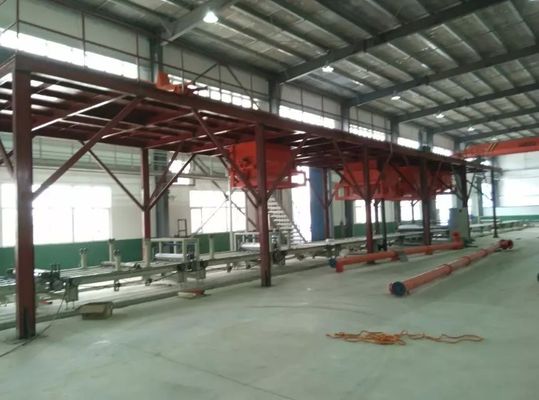

The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree, this production line is divided into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)
Attention
The technology transfer fees of the composite mgo board:6000yuan (If you purchase our equipment,then the technology fee is free)
Sign the contract printed by Industry and Commerce B urear
We provide national grade certificate of key new product, quality and fireproofing grade ,and train2--3 technical personnel for you till then they master the recevant technology.
Excellect service
1)Fully life-cycle value services
Our company provides mgo board production line design ,cost accounting,installation and operation,equipment maintenance and the whole life cycle techincal support
2)all-around thechnical service
We provide technical formula for clients,to help clients to occupy the leading position in the market.
3)complete data specification
Provide production line equipment technical data and instructions,and provide the mgo board production line formula.
4)quality commitment
The company regards product quality as the lives of enterprise,the main components and wearing parts are made of high quality wear-resistant materials and advanced processing technology,so that the equipment endurable and wear resisting ,wearing parts warranty for one year.
