2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041

2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041
2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041 2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041 2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041 2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041

Large Image :  2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041

Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-DB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041

Description
Product Name: Building Moulding Board Machine Production Capacity: 1500 Sheets
Warranty: 1 Years Standard: CE
Type: Free Standing
Highlight:

mgo board machine

,

wall panel equipment

2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041



Fire-proof Wheat Straw Board Making Machine,Fiber Cement Board Making Machine

Fiber cement board making machine

Basic technical data
1. Product name: Non-asbestos fiber cement board
2. Standard: In conformity with National Building Material Industry Standard JC/T 412.1-2006. < Non-asbestos fiber cement board>
3. Raw material: Cement, reinforced fiber, coal ash additives
4. Product specification: ( L*W*T) 2440× 1220× 6-30mm
5. Capacity: 3 million -5million /year( calculate by 2440× 1220× 6mm board, 24 working hours continous production )
6. Production organization arrangement: 1) 3 shifts per day, 8 hours per shift, 300working days per year 2)total wokers need for this line is 52 staff, including 2 management staff, 2 techincal staff and 48 workers.

No. Test items Standard indicators Test results
1 Bending degrees
Horizontal > =22Mpa 24.9Mpa Qualified
Vertical > =17 Mpa 21.4Mpa
2 Impact strength > =2.0 KJ/m2 3.7KJ/m2 Qualified
3 Indensity > =1.6g/cm3 1.72g/cm3 Qualified
4 Water absorption < =24% 16.8% Qualified
5 Waterproofness According to the National standard GB8041 tested -24H checking allow damp mark on the back of the board, but no water drop Meet the National standard GB8041 Qualified
6 Freezing resistance According to the National standard GB8041 tested- after 25 times Cycliccrackingno break and layer appear Meet the National standard GB804

Required Raw Material

wheat straw board is made of filling materials,

such as sawdust or all kinds of crushed plant

straw (you can select any one kind) and several

 chemical raw materials which are token as

modified material after special technology.

Technical Index for finished board

1. Oxygenic index%: >90

2. Level combustion: SO

3. Vertical combustion: SO

4. Water content rate: 10.9%

5. Capacity: 1.15g/cm3

6. Static bending intensity: 169.46Mpa

7. Density: T/ m3  1.13

8. Water resistance: Without chalking for 24

hours and there is no change on surface

9. No “Three-wastes” (waste water, waste gas

 and waste residue), no pollution and

environmental protection

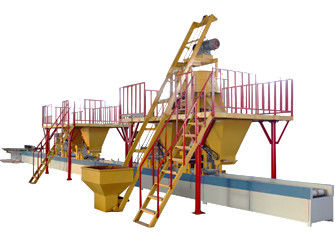

Structure Principle for Machine

wheat straw baord machine with fashionable

design, reasonable structure, stable running

manufactured board of even thickness in larg

 production once through double- roller-extruding

 technology. This production line is

equipped with shaking device which remove

inside and outside air bubble, so our board is

more compact. In addition, we use the no-woven

 cloth as the separating film to increase the

 toughness and strength of the board. The

machine can be adjusted arbitrarily, and then

 produce the board with the thickness of

2-60mm, the biggest width of 1,300mm and

 unlimited length. So you can adjust the thickness

 of board at will

   2 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041 02 - 60mm Thick Fire Proof Wheat Straw Board Making Machine Eco Friendly GB8041 1
