Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials

Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials
Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials

Large Image :  Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials

Product Details:
Place of Origin: China
Brand Name: chuangxin
Certification: CE
Model Number: XD-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per year

Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials

Description
Product Name: Building Moulding Board Machine Production Capacity: 1000 Sheets
Texture Of Material: Steel Warranty: 1 Years
Automatic Grade: Automatic Raw Material: Mgo,mgcl,fiber Glass Mesh
Standard: CE Type: Free Standing
High Light:

sandwich panel line

,

eps sandwich panel machine

Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials

XD-D Fully Automatic Mgo sandwich wall panel forming machine With 2000 SQM

.professional equipment manufacturer, main equipments are following:

Magnesium Oxide Board (MgO Board) Production Line, Fire-resistant Decorating

 Board Production Line, Straw Board Production Line, Straw Door Production Line,

 Wall Board (Sandwich Wall Board) Production Line, Vent-pipe Board Production

Line and Roof Tile Production Line. The above production line can produce

Magnesium Oxide Board (MgO board), Fire-resistant Decorating Board

Straw Board, Straw Door, wall board(Sandwich Wall Board), vent-pipe board

and Roof Tile.

 Product Details



ITEM

wall decorative panels

TYPE

EPS Sandwich Panel

MATERIAL

steel sheet + external wall house EPS + steel sheet

SPECIFUCATION

(mm)

Width

960,980

Length

≤12,000

Overall Thickness

20~200mm

SURFACE MATERIAL

(mm)

Color Coated Steel Sheet

Thickness

0.3~0.8mm

Coating

PE or PVDF

CORE MATERIAL

Material

EPS

Density of Core Material

7-30kg/m3

Thermal Conductivity

0.041w/m. k

BRAND NAME

Liangjian

PLACE of ORIGIN

China (Mainland)

GRADE STANDARD

National Standard Grade

APPEARANCE

Any Color With ribbed

CHARACTERISTICS

Easy to install; light weight; long life service

APPLICATION

Warehouse, workshop,industrial factory buildings, office buildings, stadiums, villas, and public buildings



mgo foam board making machine



This whole production line can used to produce MGO door board, MGO board, Sanding mgo board, MGO foam board, fireproof board, cement board, EPS sandwich wall panel, lightweight wall panel.



It is the multi-functional production line for many kinds of modern construction materials, is well received by clients who focus on green environment-friendly buildings and energy-saving constructions.

I   Equipment Feature

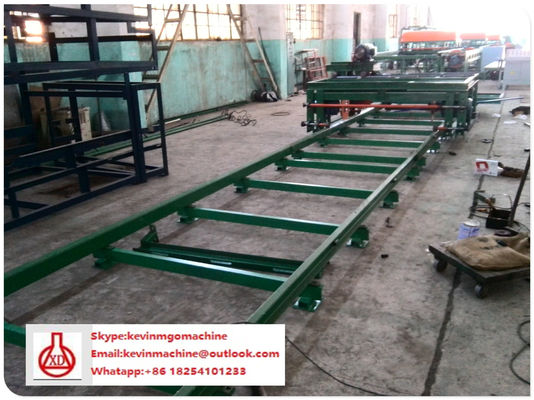

 This machine adopts the technology of double-drive double-roller-extruding, and the product is formed once after sizing, material feeding, spreading no-woven cloth, compounding and repressing. The equipment runs stably with high automatic degree, and the specification of its product can be adjusted arbitrarily. The equipment actually realizes the industrial production-line of new model building wall board, and the product have even and glazed surface with high compactness. The equipment largely reduces the labor intensity of worker and thoroughly changes many shortages of the former casting forming with upright mould or flat mould, such as large mould usage, low recycling rate, required electrical heating or steam heating, single kind of product as well as the sound insulation and heat-preserving which don’t meet the market requirements.



II Project Feature



1. The source of the production raw materials is widely with no regional restriction. The product is made of sawdust, straw (rice hulls), many kinds of crop straw and inorganic material (such as talcum powder, infusorial earth and powder coal ash) after special technology. So this project have low production cost, small investment and fast effectiveness.



2. The equipment has high automatic degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during production.



3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.

Product Feature and Performance

Performance

 Production Conditions

Wall board production line has workshop and raw material warehouse. Workshop: over 300m2-800

m2, worker: 10-16 person; fresh water; electricity:8-20KW

5.  Benefit Analysis

 (I) Cost accounting

Raw material: 19-25 Yuan/ m2 (according to different thickness); Wage: 1 Yuan/ m2

Water-electricity fee: 0.5 Yuan/ m2; Depreciation of the equipment: 0.2Yuan; Management fee: 1 Yuan/ m2

Total: 21.7 Yuan~27.70 Yuan/ m2

 (II) Profit analysis: (Take the small-scale equipment as example), production: 800 m2 per day, at

 the price of 58 Yuan/ m2 to sell,

 and then the profit per day is that 800 m2 ×58 Yuan/ m2-800 m2×21.7~27.70=29040~24240 Yuan.

6.  Attention

1.   Sign the contract printed by Industry and Commerce Bureau.

2.   Provide many kinds of certification materials about state-level test report.

3.  According to eight-hour production and automation degree, the light quality heat-preserving

composite wall board equipment can be divided into large, middle and small scale for your selection.

 We will carry out one dragon service include technology, equipment, installation and testing to ensure

 the qualified product.

          Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials 0Double Roller Extruding Light Weight Sandwich Panel Machine for Construction Materials 1


After purchased the equipment, our company will take responsibility for trainning technical personnel

until he can get the skill.

There are many professional technical personnel in our company, they will offer consultation about the

equipment and technology as well as technical training on site for free. And they will go to your

 factory for installation and testing for free.

Welcome you to our company for a site visit, we will service for you sincerely.
