Product Details:
|
| Production Capacity: | 2000sqm | Warranty: | 1 Years |
|---|---|---|---|
| Automatic Grade: | Automatic | ||
| Highlight: | wall panel equipment,wall panel manufacturing equipment |
||

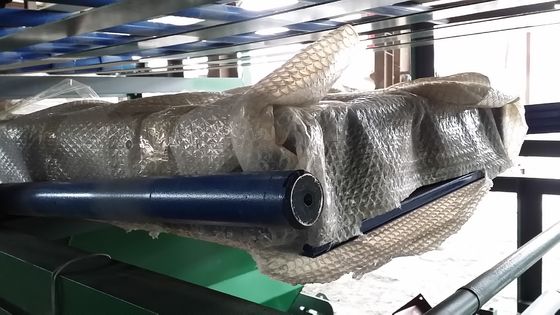

Energy Saving Compound Lightweight Wall Panel Machine with Automatic Cutting Saw
XD-D mgo sandwich panel Making machinery and mgo wall board making machine
mgo eps sandwich panel thermocol plate machine
Insulated Sandwich panel production line making thick pre-formed color steel coil stick on the both side of core material, which forms a new style building materials. This building material has some excellent features, such as high-strength, light weight and heat insulation, rugged, well appearance and so on. It is widely applied on wall and roof of light steel structure buildings. The product is with bright color and it does not need a second-decoration.
Core material can be:EPS or rock wool & glass wool panel.
Thickness: 60mm90mm120mm150mm180mm200mm
The light weight compound sandwich Wall Panel is a kind of light weight energy saving compound board material taking fibre reinforced calcium silicon board or cement calcium silicon board as panel, with cement, EPS, fly ash as fillers and forming by one time compound.
The product can replace construction materials as red brick, clay solid brick, air brick, color-coated steel sandwich board, gypsum block, wire spatial grid structure perlite board, perlite porous board etc. It can widely be apllied to wall materials of various high and low buildings such as: bank, office building, hospital, school, hotel,mall, amusement hall, active barrack, old house reconstruction, residence and workshop.
CE certification mgo sandwich panel production Instruction:
CE certification mgo sandwich panel production is our company new product developed successfully referring to
advanced technology and experience from home and abroad.
It is the great invention of the exterior insulation board realizing industrial
production, and we have applied for many national patents.
CE certification mgo sandwich panel production consists of 3 parts:
1. Fully-auto mixing system
2. Automatic board-making machine
3. Automatic cutting saw
|
No. |
Test Item |
National standard |
Wall panel testing |
|
1 |
Compressive strength |
≥3.5MPa |
≥3.7MPa |
|
2 |
Drying shrinkage |
≤0.6mm/m² |
0.37mm/ m² |
|
3 |
Hanging force |
≥1000N 24hours No 0.55mm crack in 24hours |
≥1000N 24hours No 0.55mm crack in 24hours |
|
4 |
shock resistance |
without crack shocked by 30kgs sandbag five times |
without crack shocked by 30kgs sandbag five times |
|
5 |
The bending failure load |
≥1.5 times of the self weight of the wall panel |
≥2.5 times of the self weight of the wall panel |
|
6 |
radioactivity |
Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3 |
|
7 |
density |
≤90kgs/m² |
≤43kgs/m² |
|
8 |
Air insulation of sound |
≥35dB |
≥43dB |
|
9 |
Fire resistance limit |
≥1 h |
≥ 1h |
MAIN TECHNICAL SPECIFICATION
The length of the production line:38000mm × 2200mm × 2800mm
Total Weight: about 24000KG
Main Power: 35KW
Working Speed: 4m/min
Material : 45# steel, quenched HRC 58-62
Electric Standard: 380V / 50 HZ / 3 PHASE
Feeding Width: 1150mm /1200m
Effective Width: 950mm
Thickness of the coil: 0.3-0.8mm
Density of EPS:18KG/M3
Output: 600,000m2 per year
Thickness of the material:0.4-0.8mm
Width of Material:1200mm Max
Core Material:EPS Board
Production line speed:3-5m/min
Production width:1000mm/960mm
Production thickness:50mm-150mm
EPS Sandwich panel machine is made up of color of tiles and core of EPS
Application: Public construction, roof and wall of workshop, building, both etc
Function:wall panel ,roof panel
Characteristic:quick construction ,everlasting,beautiful
